| Instrument Counts |
6,000 |
| Basic DC Accuracy |
+/-0.50% of Reading +2 Digits |
| Instrument Safety Rating |
CAT III 600V |
| Max. AC Volts |
600 |
| Max. DC Volts |
600 |
| Max. AC Amps |
10 |
| Max. DC Amps |
10 |
| Audible Continuity |
Yes |
| Max. Ohms |
40 megohm |
| Min./Max. Memory |
yes |
| Instrument Frequency Counter Range |
0.01 Hz to 50 kHz |
| Display |
LCD |
| AC Response |
TRMS |
| Series |

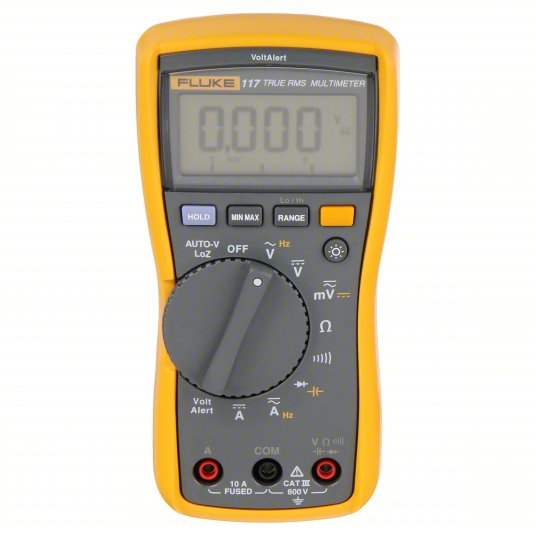

FLUKE (R) Fluke-117 |
| Battery Type |
9V Alkaline |
| Includes |

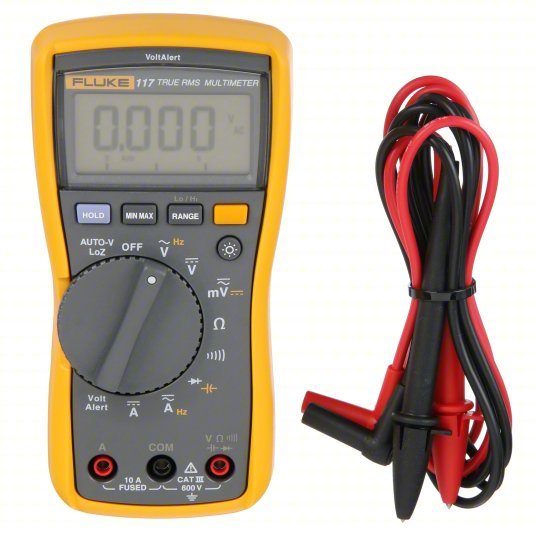

(1 Pair) 4 mm Silicone Test Lead Set, Holster, Quick Reference Guide |
| Data Hold |
Yes |
| Auto Power Off |
Yes |
| Temp. Range |
14 Degrees to 122 Degrees F |
| Diode Test |
Yes |
| Bar Graph |
Yes |
| Special Features |
Non-Contact Voltage Detection |
| Auto Ranging |
Yes |
| Calibration Certificate Included |
No |
| Standards |
CE, CSA, UL, VDE |
| Capacitance Range |
1 nF to 9999 uF |
| Data Logging |
Yes |
| Duty Cycle |
No |
| Peak Hold |
No |
| Intrinsically Safe |
No |
| Shop By |
Hot Buys |
| Minimum DC Current Measurement |
0 A |
| AC Voltage Measurement Resolution |
0.1 V |
| Batteries Included |
Yes |
| Maximum Temperature Measurement |
122 Degrees F |
| Maximum Frequency Measurement |
50 kHz |
| Current Leakage Testing |
No |
| Software Included |
No |
| Maximum Operating Temperature |
122 Degrees F |
| Maximum DC Current Measurement |
10 A |
| Battery Access |
Yes |
| Resistance Measurement Accuracy |
+/-5% |
| Minimum Resistance Measurement |
0.1 ohm |
| Maximum AC Voltage Measurement |
600 V |
| DC Voltage Measurement Resolution |
0.1 V |
| AC Current Measurement Resolution |
0.001 A |
| Parameters Measured |
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Low Input Impedance, Resistance, Temperature (K) |
| Maximum AC Current Measurement |
10 A |
| Display Type |
LCD |
| Minimum Operating Temperature |
14 Degrees F |
| Maximum Capacitance Measurement |
9,999 uF |
| Removable Screen |
No |
| Maximum DC Voltage Measurement |
600 V |
| Basic DC Voltage Accuracy |
+/-0.50% + 2 Digits |
| Weight |
550 g |
| Basic DC Current Accuracy |
1.0% + 3 |
| Minimum Capacitance Measurement |
1 nF |
| Battery Chemistry |
Alkaline |
| Fuse Access |
Yes |
| DC Current Measurement Resolution |
0.001 A |
| Minimum Frequency Measurement |
0.01 Hz |
| Capacitance Measurement Accuracy |
1.9% + 2 |
| Minimum DC Voltage Measurement |
0 V |
| AC Response Calculation |
TRMS |
| Bar Graph Included |
Yes |
| Dustproof |
No |
| Battery Voltage |
9V |
| Minimum/Maximum Memory |
Yes |
| Bluetooth Compatible |
No |
| Minimum AC Voltage Measurement |
0 V |
| IP Rating |
IP42 |
| Minimum Storage Temperature |
-40 Degrees F |
| Waterproof |
No |
| Maximum Storage Temperature |
140 Degrees F |
| Min-Max-Avg Button Included |
Yes |
| Frequency Measurement Resolution |
0.01 Hz |
| Frequency Measurement Accuracy |
0.1% + 2 |
| Minimum AC Current Measurement |
0 A |
| Minimum Temperature Measurement |
14 Degrees F |
| Basic AC Current Accuracy |
1.5% + 3 |
| Thermal Imaging |
No |
| Basic AC Voltage Accuracy |
1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz) |
| Maximum Resistance Measurement |
40 megaohm |
