| Max. AC Amps |
10 |
| Max. DC Volts |
600 |
| Max. Ohms |
40 M |
| Display |
LCD |
| Max. DC Amps |
10 |
| Max. AC Volts |
600 |
| Standards |
CE, CSA |
| Auto Ranging |
No |
| Battery Type |
AAA |
| Calibration Certificate Included |
No |
| Duty Cycle |
Yes |
| Auto Power Off |
No |
| Instrument Safety Rating |
CAT III 600V |
| Min./Max. Memory |
Yes |
| Intrinsically Safe |
No |
| NIST Certification By |
Not Certified |
| Instrument Frequency Counter Range |
0.01 Hz to 50 kHz |
| Series |
107 |
| Includes |

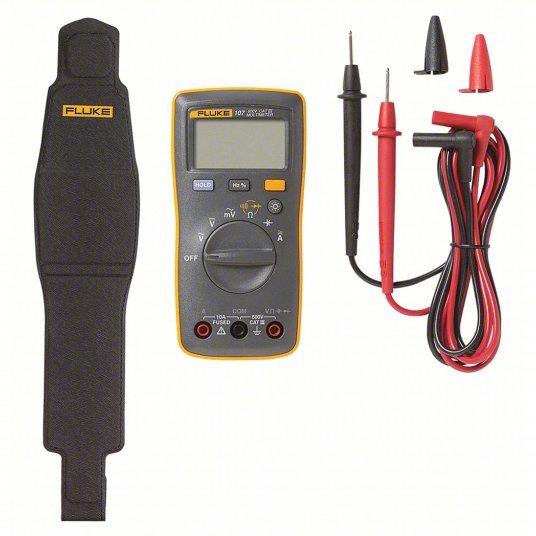

(2) Batteries, Strap |
| Special Features |
Measure AC/DC Voltage and Current |
| Peak Hold |
No |
| Capacitance Range |
1 nF to 1000 nF |
| Bar Graph |
No |
| Data Hold |
No |
| Diode Test |
Yes |
| Basic DC Accuracy |
+/-0.50% of Reading +3 Digits |
| Instrument Counts |
6,000 |
| Data Logging |
No |
| Audible Continuity |
Yes |
| AC Response Calculation |
Average |
| Frequency Measurement Accuracy |
0.1 % + 3 |
| Resistance Measurement Accuracy |
+/-1.5% |
| Basic AC Current Accuracy |
+/-1.5 % + 3 |
| Display Type |
LCD |
| Capacitance Measurement Accuracy |
2 % + 5 |
| Maximum Storage Temperature |
140 Degrees F |
| Basic DC Voltage Accuracy |
+/-0.50% + 3 Digits |
| Maximum Operating Temperature |
104 Degrees F |
| Minimum Capacitance Measurement |
1 nF |
| Battery Access |
Yes |
| Waterproof |
No |
| Maximum Capacitance Measurement |
1,000 nF |
| Maximum DC Voltage Measurement |
600 V |
| Minimum AC Voltage Measurement |
0 V |
| IP Rating |
IP40 |
| Basic DC Current Accuracy |
1.5 % + 3 |
| Software Included |
No |
| Dustproof |
No |
| Minimum/Maximum Memory |
Yes |
| Minimum AC Current Measurement |
0 A |
| Minimum DC Voltage Measurement |
0 V |
| Bluetooth Compatible |
No |
| Minimum Frequency Measurement |
0.01 Hz |
| Weight |
200 g |
| NIST Certification By Manufacturer |
Not Certified |
| Minimum Operating Temperature |
32 Degrees F |
| Maximum AC Voltage Measurement |
600 V |
| Computer Interface Connection Type |
None |
| Maximum Frequency Measurement |
50 kHz |
| Basic AC Voltage Accuracy |
1.0 % + 3 |
| Thermal Imaging |
No |
| Maximum AC Current Measurement |
10 A |
| Maximum DC Current Measurement |
10 A |
| Bar Graph Included |
No |
| Parameters Measured |
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K) |
| Battery Chemistry |
Alkaline |
| Minimum Storage Temperature |
-22 Degrees F |
| Removable Screen |
No |
| Maximum Resistance Measurement |
40 megaohm |
| Batteries Included |
Yes |
| Current Leakage Testing |
No |
| Minimum DC Current Measurement |
0 A |
