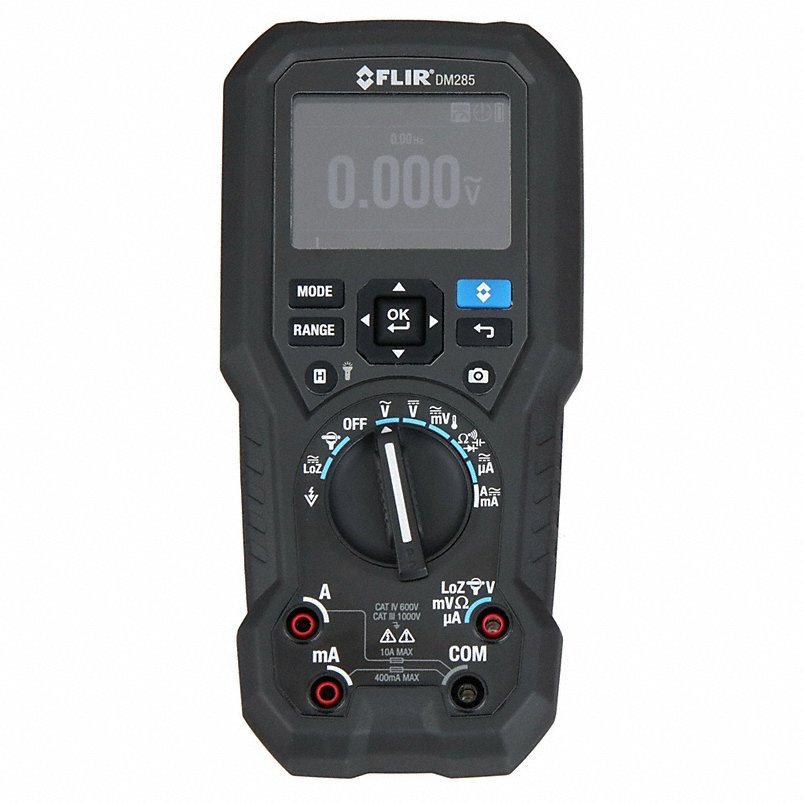

FLIR DM285 Digital Multimeter CAT IV 600V, TRMS, 1,000 V Max AC Volt Measurement, 6,000, TFT LCD
by FLIR
$1,251.99
SKU KV444M24
Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1 Percent, Basic DC Voltage Accuracy +/-0.09 Percent, Data Hold Yes, Basic DC Current Accuracy +/-1 Percent, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000
| Item | Digital Multimeter |
| Instrument Counts | 6000 |
| Basic DC Accuracy | +/-0.09% |
| Instrument Safety Rating | CAT IV 600V |
| Max. AC Volts | 1,000 |
| Max. DC Volts | 1,000 |
| Max. AC Amps | 10 |
| Max. DC Amps | 10 |
| Audible Continuity | Yes |
| Max. Ohms | 50 megohm |
| Duty Cycle | No |
| Interface | Bluetooth |
| Bar Graph | Yes |
| Data Logging | Yes |
| Battery Type | AA Alkaline |
| Auto Ranging | Yes |
| Data Hold | Yes |
| Instrument Frequency Counter Range | 1 Hz to 100 kHz |
| Calibration Certificate Included | No |
| Standards | CE, cULus |
| Peak Hold | No |
| Capacitance Range | 1 pF to 40 mF |
| Auto Power Off | Yes |
| Special Features | Bluetooth, Data Logging, Identify Energized and Potentially Faulty Equipment from A Safe Distance with IGM Technology, LoZ, Meter Link, Variable Frequency Drive Measurement Function |
| Diode Test | Yes |
| Min./Max. Memory | yes |
| Includes | (3) Batteries, Alligator Clips, Soft Case, Test Lead Holder, Test Leads, Tripod Accessory, Type K Bead Probe |
| NIST Certification By | Not Certified |
| Display | TFT LCD |
| AC Response | TRMS |
| Series | FLIR (R) DM285 |
| Temp. Range | -40 Degrees to 752 Degrees F |
| Intrinsically Safe | No |
| Maximum DC Current Measurement | 10 A |
| Frequency Measurement Resolution | 0.01 Hz |
| Maximum Capacitance Measurement | 40 mF |
| Minimum DC Current Measurement | 0 A |
| Minimum Resistance Measurement | 6 megaohm |
| Current Leakage Testing | No |
| IP Rating | IP40 |
| Bluetooth Compatible | Yes |
| Resistance Measurement Accuracy | +/-3.00% |
| Minimum Capacitance Measurement | 1 pF |
| Fuse Access | Yes |
| Maximum Frequency Measurement | 100 kHz |
| Removable Screen | No |
| Minimum Storage Temperature | -4 Degrees F |
| Battery Chemistry | Alkaline |
| Basic DC Voltage Accuracy | +/-0.09% |
| Frequency Measurement Accuracy | +/-1% |
| Battery Voltage | 1.5V |
| Maximum Operating Temperature | 122 Degrees F |
| AC Response Calculation | TRMS |
| Basic DC Current Accuracy | +/-1% |
| Temperature Measurement Resolution | 0.1 Degrees F |
| Minimum Frequency Measurement | 1 Hz |
| Parameters Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (IR), Temperature (K) |
| Minimum Operating Temperature | 14 Degrees F |
| Waterproof | No |
| Basic AC Current Accuracy | +/-1.5% |
| Style | Full Size |
| NIST Certification By Manufacturer | Not Certified |
| AC Current Measurement Resolution | 0.01 mA |
| DC Voltage Measurement Resolution | 0.001 V |
| Capacitance Measurement Resolution | 1 nF |
| DC Current Measurement Resolution | 0.01 mA |
| Minimum Temperature Measurement | -40 Degrees F |
| Maximum Temperature Measurement | 752 Degrees F |
| Maximum Storage Temperature | 140 Degrees F |
| Thermal Imaging | Yes |
| Basic AC Voltage Accuracy | +/-1% |
| Weight | 18.9 oz |
| Minimum AC Voltage Measurement | 0 V |
| Maximum AC Current Measurement | 10 A |
| AC Voltage Measurement Resolution | 0.001 V |
| Dustproof | Yes |
| Maximum DC Voltage Measurement | 1,000 V |
| Battery Access | Yes |
| Display Type | TFT LCD |
| Min-Max-Avg Button Included | Yes |
| Resistance Measurement Resolution | 0.1 ohm |
| Multimeter Features | Bluetooth-Compatible, Data Logging, Dustproof, Thermal Imaging |
| Computer Interface Connection Type | Bluetooth, Wireless |
| Minimum/Maximum Memory | Yes |
| Maximum Resistance Measurement | 50 megaohm |
| Capacitance Measurement Accuracy | +/-2% |
| Temperature Measurement Accuracy | +/-1% |
| Bar Graph Included | Yes |
| Minimum AC Current Measurement | 0 A |
| Batteries Included | Yes |
| Minimum DC Voltage Measurement | 0 V |
| Maximum AC Voltage Measurement | 1,000 V |
