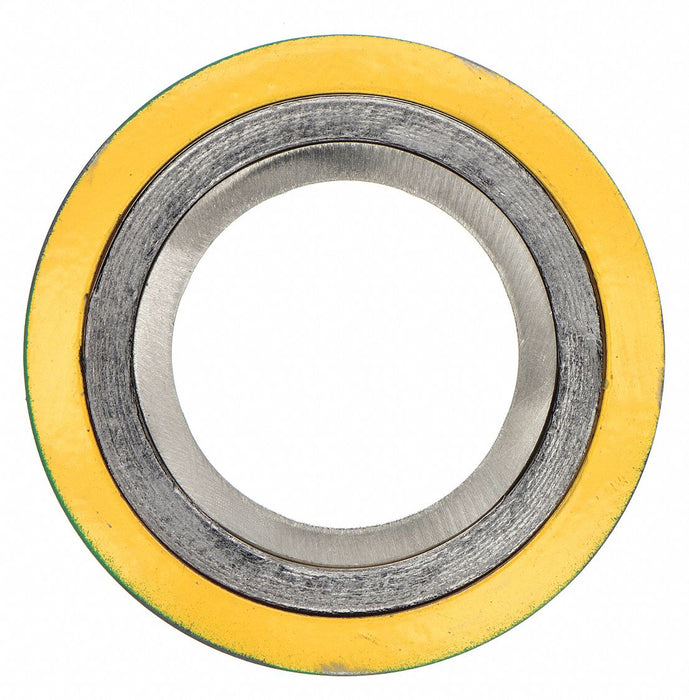

Flexitallic CGI Spiral Wound Flange Gasket 1-1/2 in Pipe

Flexitallic CGI Spiral Wound Flange Gasket, ANSI Class 300/400/600, 1-1/2 in Pipe, 316L SS Winding / Graphite Filler

UPC: | Harmonization / Schedule B : 8484.10.0000

Country of Origin: China | Shipping Weight: 0.25 lbs

$16.22 - $16.22
$16.22
$16.22 - $16.22
$16.22

Spiral Wound Flange Gasket: Graphite Filler, 316L Stainless Steel Winding, For 1 1/2 in Pipe. Vendor: Flexitallic. Mfr Model: CGI. Country of Origin: China.

Inside Ring Material 316L Stainless Steel
Outside Ring Material Carbon Steel
Filler Material Graphite
For Pipe Size 1-1/2 in
Inside Diameter 1-3/4 in
Outside Diameter 3-3/4 in
Thickness 3/16 in
Stripe Color Gray
Outside Rim Color Green
FDA Approved No
Minimum Operating Temperature -400 °F
Maximum Operating Temperature 842 °F
Maximum Operating Pressure 6,251.14 psi
Resistance Properties Chemical-Resistant
Features Increased Compressive Force for Blow-Out Prevention and is Specified for High Pressure; Temperature Service or where Corrosive or Toxic Media are Present
For Flange Surface Type Flat Surface; Raised Surface
For DIN PN PN10; PN100; PN16; PN160; PN25; PN250; PN40; PN64
For Flange ANSI Class 300; 400; 600
Standards ASME B16.20; ASME B16.5; B16.47; BS3381
Winding Material 316L Stainless Steel
Country of Origin China
