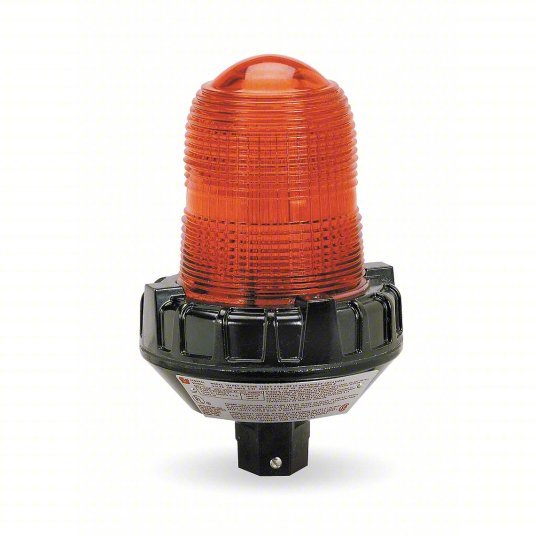

Federal Signal 151XST-120R Strobe Light 120V AC, 9 1/4 in Overall Ht, 5 1/2 in Overall Dia, Red

UPC: 782979380740 | Harmonization / Schedule B : 8531.80.9051

Country of Origin: United States | Shipping Weight: 4.3 lbs

Original price $1,069.59 - Original price $1,069.59
Original price
$1,069.59
$1,069.59 - $1,069.59
Current price $1,069.59
Strobe Light, Color Red, Lamp Type Strobe Tube, Flashes per Minute 80, Light Output 165 Candela, Lamp Life 10,000 hr, Lens Design Dome, Lens Material Glass, Housing Material Aluminum, Mounting (F) 3/4 in NPT, Operating Temp. -67 Degrees to 150 Degrees F, Rating IP66, Marine, NEMA 4X, Power Source Wire, Current Drawn 0.32A AC, Height 9 1/4 in
Color Red
Lamp Type Strobe Tube
Power Source Wire
Lamp Life 10,000 hr
Lens Material Glass
Flashes per Minute 80
Housing Material Aluminum
Standards CSA Certified, cUL Listed, cULus Listed, Marine Rated, UL Listed
Features Conformal Coated PCBA
Current Drawn 0.32A AC
Operating Temp. -67 Degrees to 150 Degrees F
Lens Design Dome
Includes Dome Guard
Rating IP66, Marine, NEMA 4X
Mounting (F) 3/4 in NPT
Light Output 165 Candela
Product Type Strobe Light
NEMA Rating NEMA 4X
Connection Type Wire
Brightness Selection Fixed Brightness
Control Protocol Direct Wire
Includes Mounting Hardware No Mounting Hardware
Lens Shape Dome
Operating Temperature - Minimum -67 Degrees F
IP Rating IP66, IP69K
Requires Base Base Not Required
Lifespan 10,000 hr
Light Operating Mode Strobe
Operating Current 0.350 A @ 120V AC
Housing Color Black
Light Intensity 520,000 cd
Footprint Shape Circle
For Hazardous Location Class I, Division 2, Class II, Division 1
Operating Temperature - Maximum 150 Degrees F
Lens Color Red
For Location Indoor, Outdoor
Mounting Style Surface Mount
