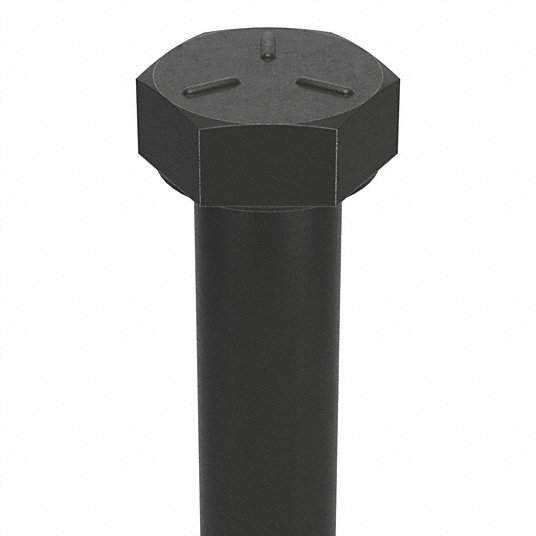

Fabory U01060.043.0800 Grade 5, 7/16"-20 Hex Head Cap Screw, Black Oxide Steel, 8 in L, 5 PK

UPC: | Harmonization (Schedule B): 7318.15.8066

Original price $20.25 - Original price $20.25
Original price
$20.25 - $20.25
Current price $20.25

Hex Head Cap Screw, System of Measurement Inch, Basic Material Steel, Material Grade Grade 5, Fastener Finish Plain, Dia./Thread Size 7/16 In.-20, Fastener Length 8 in, Fastener Thread Direction Right Hand, Fastener Thread Type UNF (Fine), Fastener Thread Style Partially Threaded, Fastener Industry Standards ASME B18.2.1, Head Type Hex, Min. Thread Length 1 1/8 in, Head Height 9/32 in, Head Width 5/8 in, Package Quantity 5

Item Hex Head Cap Screw
Material Steel
Finish Black Oxide
Material Grade/Class Grade 5
Thread Style Partially Threaded
Drive Hex
Standards ASME B18.2.1 SAE J429
System of Measurement Inch
Thread Direction Right Hand
Temp. Range -58 Degrees to 302 Degrees F
Rockwell Hardness HRC19
Thread Type UNF (Fine)
Tensile Strength 120,000 psi
Proof Load 74,000 to 85,000 psi
Package Quantity 5
Material Quality Standard SAE J429
Thread Pitch Partially Threaded
Hex Head Cap Screw Type Hex Head Cap Screw
Globally Sourced Globally Sourced
Thread Fit 2A
Maximum Temperature 302 Degrees F
Minimum Temperature -58 Degrees F
Manufacturer Location Globally Sourced
Material Quality Standards SAE J429
Type Hex Head Cap Screw
Head Type Hex
Screw Industry Standards ASME B18.2.1
Fastener Industry Standards ASME B18.2.1
Bolt Material Steel
Basic Material Steel
Material Type Steel
Fastener Thread Type UNF (Fine)
Fastener Thread Style Partially Threaded
Drive Type External Hex
