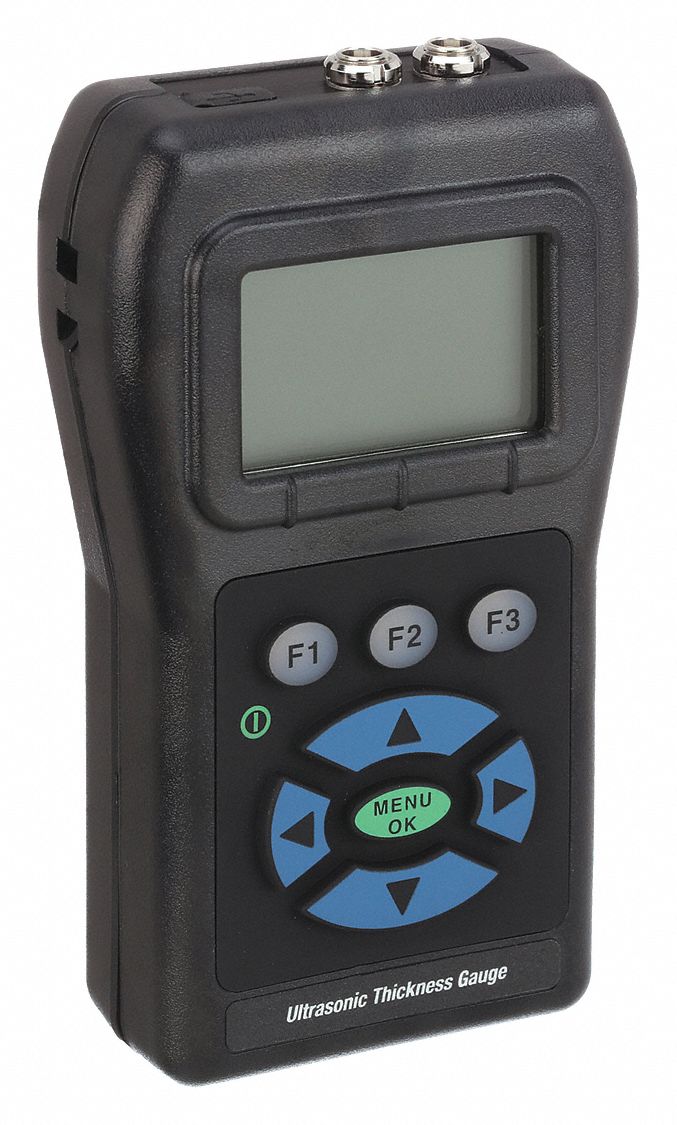

Extech TKG150 Ultrasonic Thickness Gauge, 0.004 in, 0.001 in Thick Measurement Resolution, NIST, Included

Extech TKG150 Ultrasonic Thickness Gauge, 0.004 in, 0.001 in Thick Measurement Resolution, NIST, Included

UPC: 793950151501 | Harmonization / Schedule B : 9031.80.8080

Country of Origin: United States | Shipping Weight: 3.25 lbs

$4,112.58 - $4,112.58
$4,112.58
$4,112.58 - $4,112.58
$4,112.58

Ultrasonic Thickness Gauge, Includes 2 oz Bottle of Coolant, 5 MHz Transducer, Carrying Case, Protective Holster, USB Cable, Thickness Measurement Accuracy 0.004 in, Thickness Measurement Resolution 0.001 in, Calibration Certificate Type NIST, Maximum Frequency 20 MHz, Maximum Thickness Measured 20 in, Minimum Thickness Measured 0.04 in, Maximum Velocity 18,699 mps, Minimum Velocity 508 mps, Number of Digits 4, Minimum Frequency 0.5 MHz, Number of Records Stored 100,000, Standards CE

Includes 2 oz Bottle of Coolant, 5 MHz Transducer, Carrying Case, Protective Holster, USB Cable
Accuracy 0.004 in
Measuring Range 0.040 in to 20 in
Base Material Steel
Recording Capacity 5000 Readings
Data Storage Yes
Standards CE
Application Non-Destructive Thickness Measurements of Primarily Steel
Frequency (MHz) 0.5 to 20 MHz (-3dB)
Velocity Ranges 0.2 to 0.7362 in/msec (0.508 to 18.699 mm/msec)
Resolution (In./mm) 0.001/0.01
Calibration Certificate NIST
Interface USB
Measurement Rate 4 to 20 sec
Maximum Velocity 18,699 mps
Calibration Certificate Type NIST
Maximum Operating Temperature 122 Degrees F
Minimum Operating Temperature -4 Degrees F
Battery Chemistry Alkaline
Battery Voltage 1.5V
Power Source Battery
Minimum Velocity 508 mps
Number of Batteries Required 2
Digital Display Screen Type LCD
Number of Records Stored 100,000
Batteries Included Yes
Number of Digits 4
Maximum Frequency 20 MHz
Minimum Frequency 0.5 MHz
Power Source - TS Only Battery
Country of Origin United States
