| Series |
Rebel EMP 215ic |
| Phase |
Single-Phase |
| Input Voltage |
120V AC, 208V AC, 230V AC |
| Function |
DC TIG, Flux-Cored, MIG, Stick |
| Rated Output |
205A @ 25% Duty Cycle |
| OCV |
90 |
| Includes |

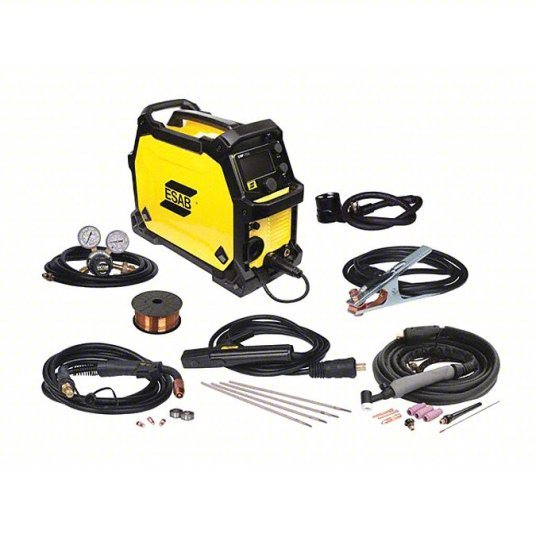

17V-Style TIG Torch, Contact Tips, Drive Rolls, Electrode Holder, Sample Spool of 0.03 in Wire, Stick Electrodes, Tweco Fusion 180 A MIG Gun, Tweco Ground Clamp with Leads, Victor Argon Flowgauge Regulator & 12.5 ft Hose |
| Application |
Auto Body Shop, Construction, Equipment, Farm/Ranch, HVAC, Light Fabrication, Metalworking, MRO |
| Hz |
50/60 |
| Standards |
CSA Certified |
| Features |
LCD Display |
| Welding Processes |
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| Amperage Range |
5 A to 240 A |
| Input Frequency |
50/60 Hz |
| TIG Welding Output @ Duty Cycle |
130 A @ 15.2 V, 40%, 180 A @ 17.2 V, 30% |
| Stick Welding Minimum Output Current |
5 A |
| Stick Welding Output @ Duty Cycle |
180 A @ 27.2 V, 25%, 90 A @ 23.6 V, 40% |
| Stick Welding Maximum Output Current |
240 A |
| Weight |
40 lb |
| Plug Type |
6-50P |
| Welding Mode |
CC/CV |
| TIG Arc Start Feature |
Lift Arc Start |
| TIG Welding Minimum Output Current |
5 A |
| Power Cord Included |
Yes |
| Effective Input Current |
150 A @ 120V AC (Single-Phase), 240 A @ 230V AC (Single-Phase) |
| MIG Welding Maximum Output Current |
240 A |
| Minimum Wire Feed Speed |
59 in/min |
| For Material Type |
Aluminum, Mild Steel, Stainless Steel |
| Remote Connection Type |
8-Pin (ESAB) |
| Color |
Yellow |
| For Wire Type |
Aluminum, Flux-Cored, Solid |
| Max. Input Current |
150 A @ 120 V, 240 A @ 230 V |
| Polarity |
DC |
| MIG Welding Output @ Duty Cycle |
130 A @ 20.5 V, 20%, 205 A @ 24.3 V, 25% |
| MIG Welding Minimum Output Current |
5 A |
| Open Circuit Voltage |
68 V DC |
| TIG Welding Maximum Output Current |
240 A |
| Maximum Wire Feed Speed |
476 in/min |
| Model |
0558102240 |
