Enerpac RC106 11.2 ton Capacity, 6.13 in Stroke, General Purpose Hydraulic Cylinder - KVM Tools Inc.KV80012784

Enerpac RC106 11.2 ton Capacity, 6.13 in Stroke, General Purpose Hydraulic Cylinder

Name: Enerpac RC106 11.2 ton Capacity, 6.13 in Stroke, General Purpose Hydraulic Cylinder
Brand: Enerpac
Price: 1024.69 USD
Availability: InStock

UPC: 662005300822 | Harmonization / Schedule B : 8412.21.0075

Country of Origin: China | Shipping Weight: 9.95 lbs

$1,024.69 - $1,024.69

$1,024.69

$1,024.69 - $1,024.69

$1,024.69

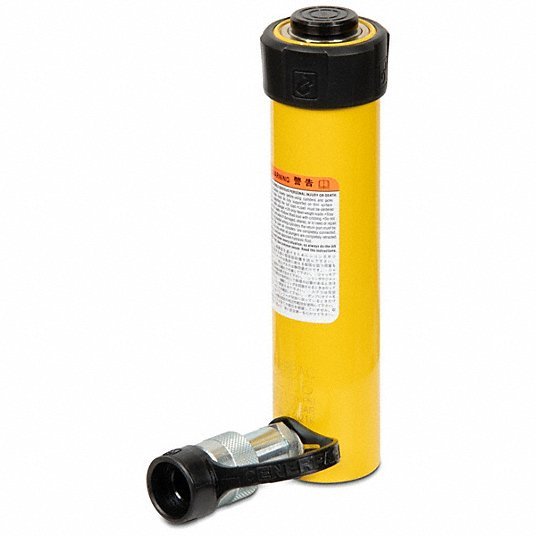

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 10 ton, Max. Push Capacity 10 ton, Stroke Length 6 1/8 in, Nominal Stroke Length 6 in, Effective Push Area 2.24 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 13.7 cu in, Retracted Height 9.75 in, Extended Height 15.33 in, Outside Dia. 2.25 in, Plunger Dia. 1.5 in, Plunger Thread Size 1 In.-8, Collar Thread Size 2-1/4 In.-14, Base Bolt Circle Dia. 1.56 in, Center Hole Dia. 1 1/2 in, Series RC, Includes Coupler, Dust Cap

Item	Hydraulic Ram
Weight Capacity	10 tons
Max. Pressure	10,000 psi
Oil Capacity	13.70 cu. in.
Effective Area	2.25 sq. in.
Includes	Coupler, Dust Cap
Body Material	Steel
Handle	No
Cylinder Type	General Purpose
Single Acting/Double Acting	Single Acting
Oil Capacity Push	13.7 cu in
Series	RC
Effective Push Area	2.24 sq in
Nominal Capacity	10 ton
Max. Push Capacity	10 ton
Type	General Purpose
Package Quantity	1
