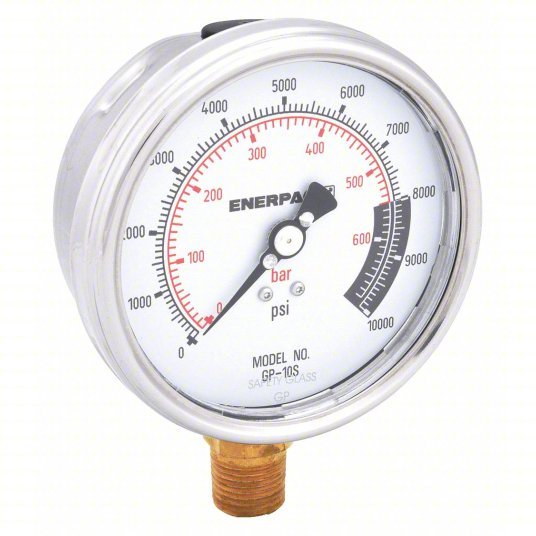

Enerpac GP10S Hydraulic Cylinder Pressure Gauge 0 to 10,000 psi psi, 4 in Dial, 1/2 in NPTF Male, Bottom

Pressure Gauge, Gauge Type Dry, Dial Size (In.) 4, Range 0 to 10,000 psi, Connection Size 1/2" NPT, Connection Location Lower, Range (PSI) 0 to 10,000, Pressure Range 0 to 10,000 psi, Smallest Graduation (PSI) 100, Accuracy (%) +/-1, Lens Material Glass, Required Gauge Adapter 3KD38, Characteristics Calibrated with a Bottom Connection, For Use With All Cylinders, Includes Safety Blowout Disc and Pressure Equalizing Membrane, Manufacturers Warranty Length Limited Lifetime

Connection Location	Lower
For Use With	All Cylinders
Gauge Application	General Purpose
Includes	Pressure Equalizing Membrane, Safety Blow-Out Disc
Range	0 to 10,000 psi
Accuracy	+/-1.00%
Material	Stainless Steel
Color	Silver
Application	Hydraulics
Max Pressure (PSI)	10000
Gauge Primary Range Values	0 to 10,000
Gauge Primary Range Units	psi
Gauge Connection Type	NPTF
Basic Gauge Case Material	Stainless Steel
Case Color	Metallic
Basic Gauge Lens Material	Glass
Series	GP
Smallest Graduation	100 psi
Gauge Panel Mountable	No
Pressure and Vacuum Gauge Type	Pressure Gauge
Required Gauge Adapter	Enerpac GA-2
Gauge Case Material	Stainless Steel
Liquid Filled	No
Gauge Connection Location	Bottom
Gauge Primary Range Smallest Graduation	100
Gauge Case Color	Stainless Steel
Gauge Lens Material	Glass
Gauge Accuracy	+/-1.00%
Calibration Certificate Included	No
Max. Pressure (PSI)	10000
Gauge Mounting Method	Lower Mount
Type	Dry
Compatible With	All Cylinders
Secondary Scale Minor Graduations	10
Compatible Cylinder/Press	All Cylinders
Adjustable Pointer	No
Accuracy Scale	Full Scale
Secondary Scale Units	bar
Vibration Resistance	None
Process Connection Type	NPTF
Hazardous Location Rating	Not Rated
Primary Scale Minor Graduations	100
Liquid-Filled Case	No
Includes Mounting Hardware	No
Lens Material	Glass
Includes Vent Plug	No
Compatible Manufacturer Model Number	V-10, V-91
Primary Pressure Range	0 to 10,000 psi
Process Connection Gender	Male
Gauge Case Liquid	None
Pressure Gauge Type	Hydraulic Cylinder Pressure Gauge
Process Connection Location	Bottom
IP/NEMA Rating	Not Rated
Secondary Pressure Range	0 to 700 psi
Panel-Mountable	No
Pressure Range Type	Pressure
Requires Adapter	Yes
Removable Bezel	No
Scale Type	Dual
Case Construction	Corrosion Resistant
Field Fillable	No
Compatible Gauge Adapter	Enerpac GA-1, Enerpac GA-2
Compatible Brand and Series	ENERPAC V-10, ENERPAC V-91
Blowout Safety Back	Yes
Freeze Resistant Movement	No
Primary Scale Units	psi
Dial Color	White
Scale	Imperial, Metric
