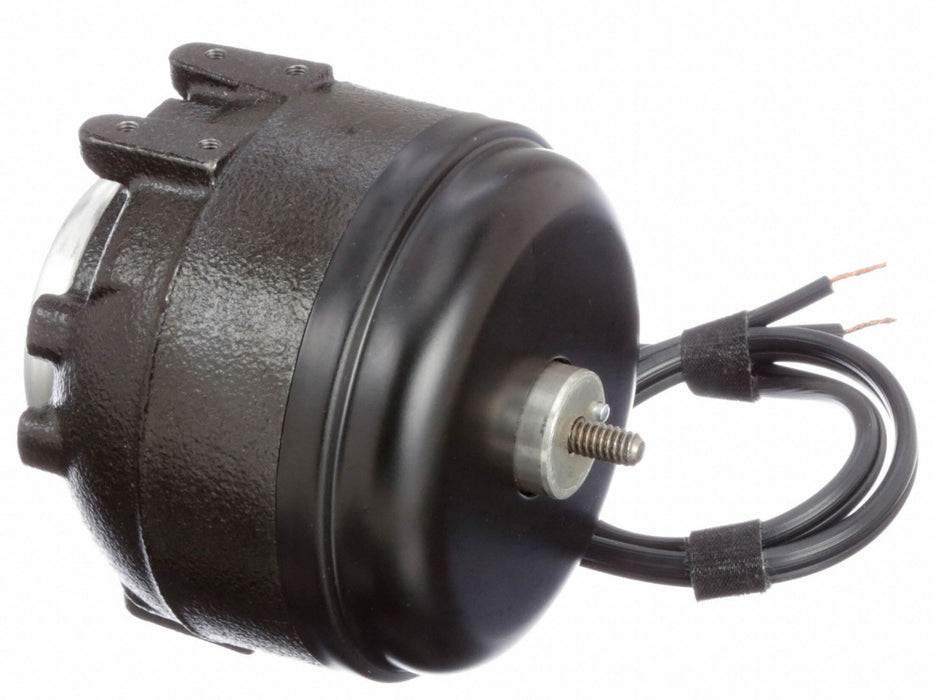

EM&S ESP-L35EM2 Unit Bearing Motor, 1/20 HP, 1500 RPM, 230V AC, Cast Iron Frame

EM&S ESP-L35EM2 Unit Bearing Motor, 1/20 HP, 1500 RPM, 230V AC, Cast Iron Frame

UPC: | Harmonization / Schedule B : 8501.10.6020

Country of Origin: United States | Shipping Weight: 4.4 lbs

$129.34 - $129.34
$129.34
$129.34 - $129.34
$129.34

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 230V AC, 0.70 A Full Load Amps, Non-Standard Frame, Output Watts 35 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron

Motor Sub Application Refrigerator/Freezer
Output Watts 35 W
HP 1/20
RPM Range 1,401-1,500
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Phase Single
Voltage 230V AC
Motor Shaft Rotation CWLE
Nameplate RPM 1,500
Frame Non-Standard
Motor Thermal Protection Auto
Motor Enclosure Design Totally Enclosed Air-Over
Motor Application HVAC/R
Max. Ambient Temp. 40 Degrees C
Plug Type Round 2 Pin
Ins. Class A
Motor Service Factor 1
Frame Material Cast Iron
Motor Design Shaded Pole
Standards Meets UL and Canadian Standards for Safety
Motor Frame Material Cast Iron
Motor Mounting Type Rear/Foot
Motor Mounting Position All Angle
Hz 60 Hz
Full Load Amps 0.70 A
Motor Bearings Unit
Usable @ 208V No
Features Cool running, Quiet Operation, Thick Film Lubricating System for Long Life and Dependability
No. of Speeds 1
Usable @ 200V No
Mounting Holes Tapped 8-36
Country of Origin United States
