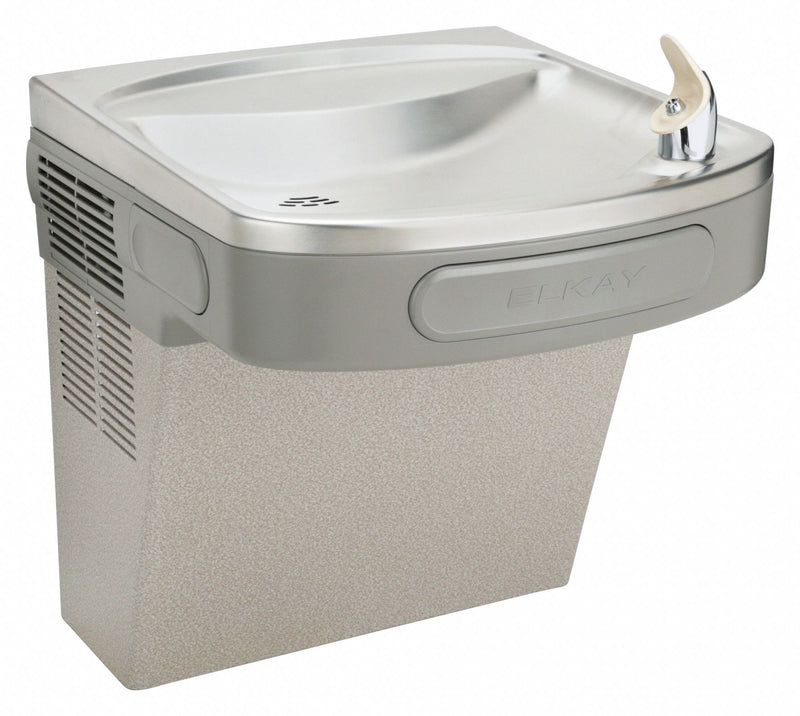

Elkay EZS8L Drinking Fountain, On-Wall, 19 13/16 in Ht, Front Pushbar, 8 gph @ 50°F, Gray

Elkay EZS8L Drinking Fountain, On-Wall, 19 13/16 in Ht, Front Pushbar, 8 gph @ 50°F, Gray

UPC: 094902226880 | Harmonization / Schedule B : 8418.69.0120

Country of Origin: United States | Shipping Weight: 57.85 lbs

$964.33 - $964.33
$964.33
$964.33 - $964.33
$964.33

The Elkay EZ models are our most popular water cooler series. These models offer easy-touch pushbar or sensor-activated controls and come standard with a Flexi-Guard Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.

Depth 19 in
Manufacturers Warranty Length 5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Height 19 13/16 in
Width 19 in
Overall Width 18 3/8 in
Overall Height 19 13/16 in
Overall Depth 19 in
Drain Outside Diameter 1 1/4 in
Inlet Tube Outside Diameter 1/4 in
Manufacturer Warranty Length 1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Mounting Hole Diameter 7/16 in
Mounting Type On-Wall
Indoor / Outdoor Indoor
ADA Compliant ADA Compliant
Number of Levels 1
Voltage 115 V AC
Color Gray
Refrigerant R134A
Full Load Amps 4 A
Compressor HP 1/5 hp
Operation Push Bar Fountain
Refrigerated / Non-Refrigerated Refrigerated
Dispenser Operation Front and Side Pushbar
Water Temp. 50 Degrees F
Dispenser Design Wall
Compliance Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Inlet 3/8 in OD
Cold Water Capacity 8 gph
Vandal Resistant Not Vandal Resistant
Standards ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 61, UL 399
Regulator Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Drain Connection 1 1/4 in
Includes Strainer
Features Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System
Bi-Level Field Adjustable Not Bi-Level Field Adjustable
Housing Finish Vinyl Clad
Environment Indoor
Housing Color Gray
Compressor Horsepower 1/4 hp
Includes Back Panel Back Panel Not Included
Station Type Single Fountain
Refrigeration Refrigerated
Includes Water Filter Water Filter Not Included
Cooling Capacity 8 gph @ 50 Degrees F
Number of Mounting Holes 3
Refrigerant Type R134A
Maximum Cold Water Temperature 50 Degrees F
Power Consumption 370 W
Maximum Constant Stream Pressure 105 psi
Includes Pet Bowl Pet Bowl Not Included
Minimum Supply Line Pressure 20 psi
Number of Bubblers 1
Minimum Constant Stream Pressure 20 psi
Temperature Adjustment Factory Set but Adjustable
Power Source Electric Corded
Product Weight 51 lb
Fountain Actuation Front Pushbar
Full Load Current 5 A
Basin Material Stainless Steel
Operating Voltage 115V AC
Housing Material Vinyl Clad Steel
Power Source - TS Only Electric Corded
Country of Origin United States
