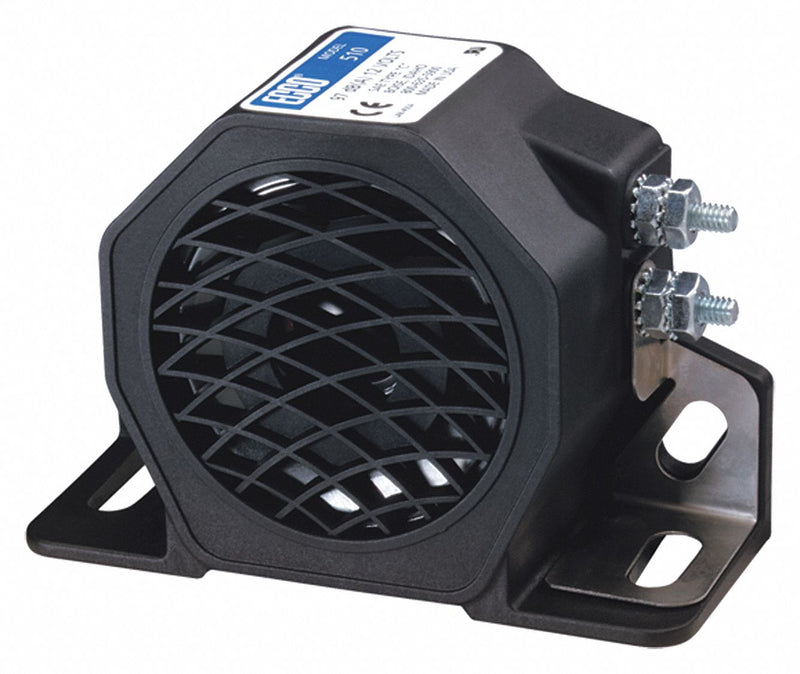

Vehicle Backup Alarm, Alarm Type Fixed, Alarm Tone Type Tonal, Maximum Sound Level 97 dB, Operating Voltage 12V DC, Minimum Sound Level 97 dB, Overall Length 4 in, Overall Width 1 5/8 in, Overall Height 2 13/16 in, SAE Type Rating Type C, Connector Type 8-32 Uni Stud Connector, Mount Type Bolt, IP Rating IP65, Series 500 Series, Speaker Direction Forward-Facing, Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, Color Black, Housing Material Nylon, Current 0.2 A
| Width |
1 39/64 in |
| Length |
4 in |
| Height |
2 51/64 in |
| Overall Height |
2 13/16 in |
| Overall Length |
4 in |
| Overall Width |
1 5/8 in |
| Wire Rope Length |
4 in |
| Sound Level |
97 dB |
| Color |
Black |
| Features |
Sealed in Epoxy for Protection Against Dust, Moisture and Vibration, Self-Grounding (Except 575) |
| Includes |
Trilingual Installation Instructions |
| Current Drawn |
0.2 A |
| Housing Material |
Nylon |
| Voltage |
12V DC |
| Rating |
0.2A |
| Mounting |
Universal |
| Standards |
AMECA, CE, R10, UL |
| Operating Temp. |
-40 Degrees to 185 Degrees F |
| Connector Type |
8-32 Uni Stud Connector |
| Alarm Type |
Fixed |
| Mount Type |
Bolt |
| Manufacturer Warranty |
1 yr |
| Minimum Sound Level |
97 dB |
| IP Rating |
IP65 |
| Maximum Sound Level |
97 dB |
| Vehicle Class |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 |
| Series |
500 Series |
| Maximum Operating Temperature |
185 Degrees F |
| SAE Type Rating |
Type C |
| Alarm Tone Type |
Tonal |
| Current |
0.2 A |
| Speaker Direction |
Forward-Facing |
| Minimum Operating Temperature |
-40 Degrees F |
| Operating Voltage |
12V DC |
| Country of Origin |
Viet Nam |
