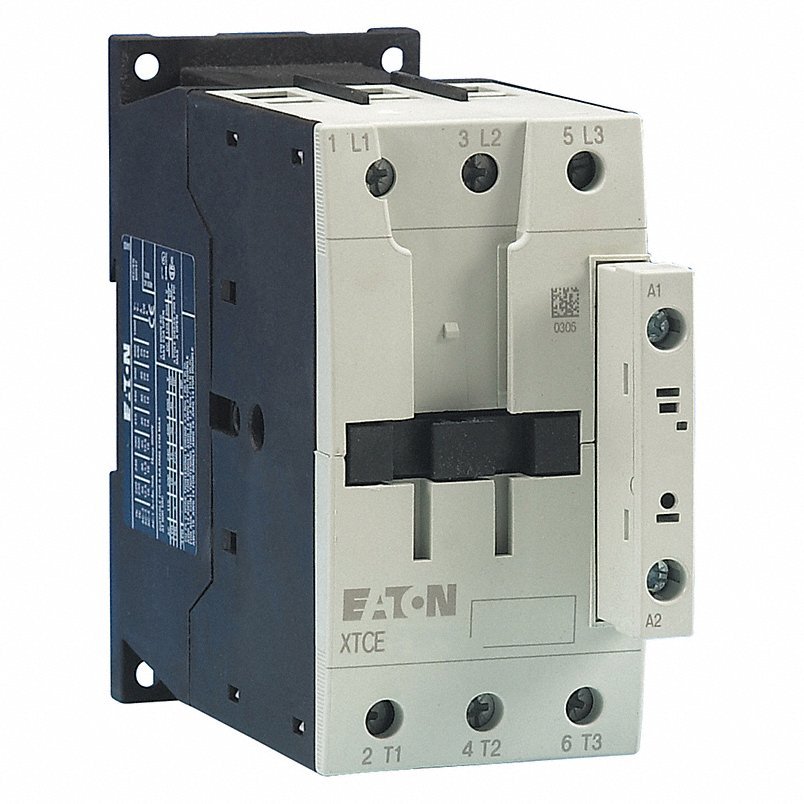

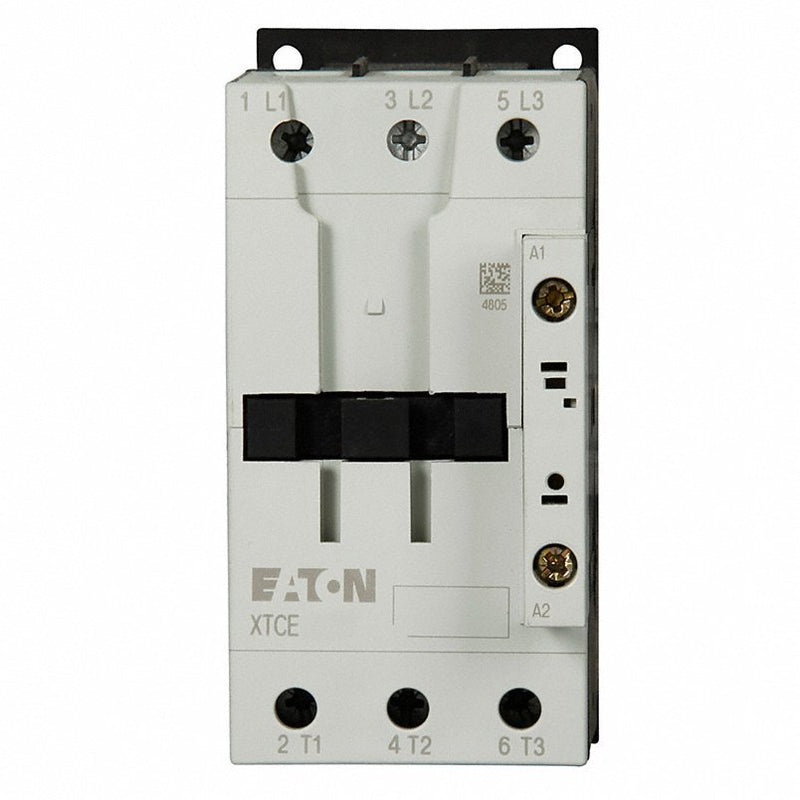

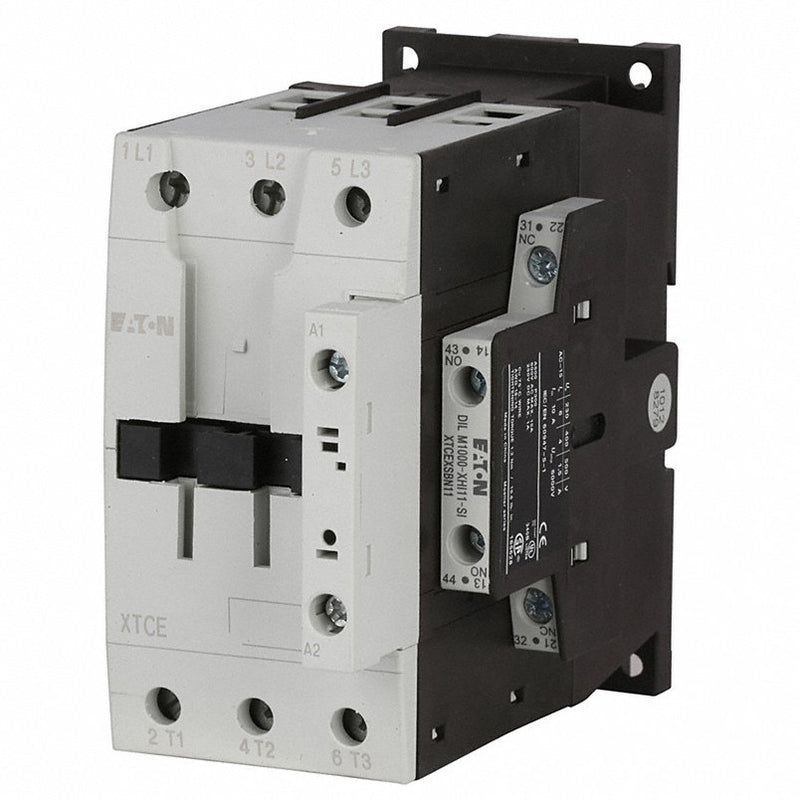

Eaton XTCE065D00A IEC Magnetic Contactor, 3 Poles, 120 V AC, 65 A, Reversing: No
by Eaton
$549.33
SKU KV4TZC5
IEC Magnetic Contactor, Full Load Amps-Inductive 65 A, Full Load Amps-Resistive 98 A, Number of Poles 3, Coil Volts 120 V AC, Reversing No, HP @ 1 Phase - 120V 5 hp, HP @ 1 Phase - 240V 15 hp, HP @ 3 Phase - 208V 20 hp, HP @ 3 Phase - 240V 25 hp, HP @ 3 Phase - 480V 50 hp, HP @ 3 Phase - 575V 60 hp, Enclosure NEMA Rating No Enclosure, Hz 50/60, Height 2.17 in, Width 2.17 in, Depth 5.2 in, Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947, Frame / Series / Class / Code Frame D
| Item | IEC Magnetic Contactor |
| Full Load Amps-Inductive | 65 A |
| Full Load Amps-Resistive | 98 A |
| Action | Non-Reversing |
| Type | Full voltage non-reversing contactor |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 15 |
| HP @ 1 Phase - 120V | 5 hp |
| HP @ 1 Phase - 240V | 15 hp |
| HP @ 3 Phase - 208V | 20 hp |
| HP @ 3 Phase - 240V | 25 hp |
| HP @ 3 Phase - 575V | 60 hp |
| HP @ 3 Phase - 480V | 50 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | No Auxiliary Contacts |
| Hz | 50/60 |
| Standards | UL/CE/CSA/CCC/ATEX/IEC EN 60947 |
| Frame / Series / Class / Code | Frame D |
| Series | XT IEC |
| Electrical Connection | Screw Terminals |
| Contact Configuration | 0 NO, 0 NC |
| Amperage Rating | 65A |
| Product Name | Eaton XT IEC contactor |
| Compliances | CE Marked |
| Coil Voltage | 110-120 Vac, 50/60 Hz |
| Certifications | UL Listed;CSA Certified;IEC 60947;EN 60947 |
| Frequency Rating | 50-60 Hz |
| Hp Rating - Max | 5, 10, 15/ 20, 25, 50, 60 hp (1/3PH @115,200,230/200,230,460,575 V) |
| Package Quantity | 1 |
