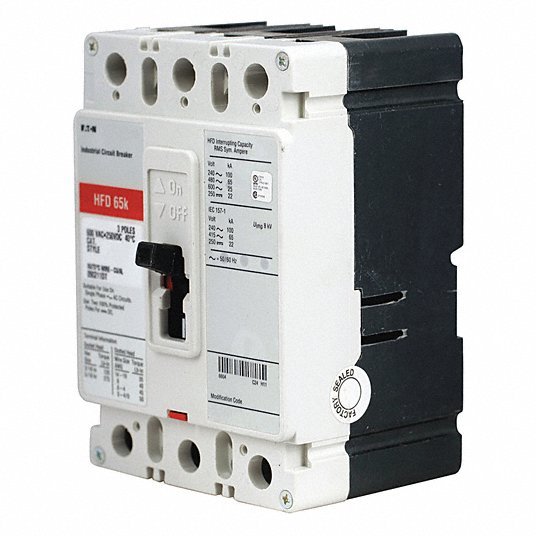

Eaton HFD3070 Molded Case Circuit Breaker, 70 A, 600V AC, 3 Pole, Free Standing Mounting Style, HFD Series
Molded Case Circuit Breaker, 70 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 100kA at 240V AC, For Use With Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse, Series HFD, High Amp Trip Setting 225 A, Low Amp Trip Setting 15 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC
Details
Item | Molded Case Circuit Breaker |
Amps | 70 A |
AC Voltage Rating | 600V AC |
DC Voltage Rating | 250V DC |
Max. AIR Rating | 100kA at 240V AC |
Terminal Connection | Load Side Lug |
Series | HFD |
Number of Poles | 3 |
Circuit Breaker Actuator | Toggle |
Circuit Breaker Mounting Style | Free Standing |
Circuit Breaker Type | Standard |
Standards | CSA Certified, IEC Rated, UL Listed |
Low Amp Trip Setting | 15 A |
High Amp Trip Setting | 225 A |
Phase Connection | ABC |
Instantaneous Trip | Fixed |
For Use With | Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
Trip Type | Thermal Magnetic |
Phase | Three |
Mounting | Free Standing |
Frame Type | Complete Breaker |
Interrupt Rating | 65 kA at 480V AC |
Max. Operating Temp. | 158 Degrees F |
Min. Operating Temp. | -4 Degrees F |
Package Quantity | 1 |
