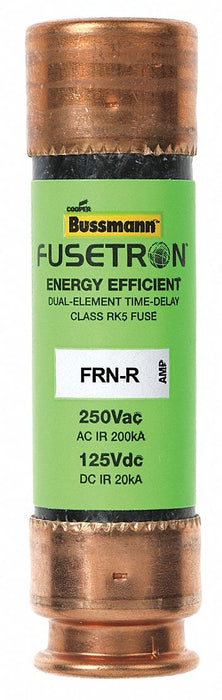

Eaton Bussmann FRN-R-50 Fuse, Class RK5

Eaton Bussmann FRN-R-50 Fuse, 50 A, 250V AC / 125V DC, Class RK5, Time-Delay, FRN-R Series

UPC: 051712101806 | Harmonization / Schedule B : 8536.10.0040

Country of Origin: Mexico | Shipping Weight: 0.12 lbs

$32.12 - $32.12
$32.12
$32.12 - $32.12
$32.12

Fuse, 50 A, 250 V AC, 125 V DC, Class RK5, FRN-R Series, Non-Indicating, Time-Delay, Body Style Cylindrical, Fits Fuse Block Style Rejection, Interrupt Rating 200kA at 250V AC / 20kA at 125V DC, Fuse Size 3 in L x 13/16 in dia, Length 3 in, Diameter 13/16 in, Equivalent Brand and Series Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R, Equivalent Series ECNR, FLNR, FRN-R, TR-R, Compatible Fuse Block Series HM250, RM250, Body Material Fiberglass, Dual Element.

CAD Available Yes
Class RK5
Series FRN-R
Speed Time-Delay
Amps 50A
AC Voltage Rating 250V AC
DC Voltage Rating 125V DC
Visual Indication Non-Indicating
Interrupt Rating 200kA at 250V AC, 20kA at 125V DC
Body Style Cylindrical
Body Material Fiberglass
Equivalent Brand and Series Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R
Equivalent Series ECNR, FLNR, FRN-R, TR-R
Fits Fuse Block Style Rejection
Compatible Fuse Block Series HM600, R250
Standards CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
Element Dual
Functionally Equal To Littelfuse FLNR, Mersen/Ferraz Shawmut TR-R
Connection Type Ferrule End x Ferrule End
Interrupt Rating - AC 200 kA
Interrupt Rating - DC 20 kA
Current 50 A
Country of Origin Mexico
