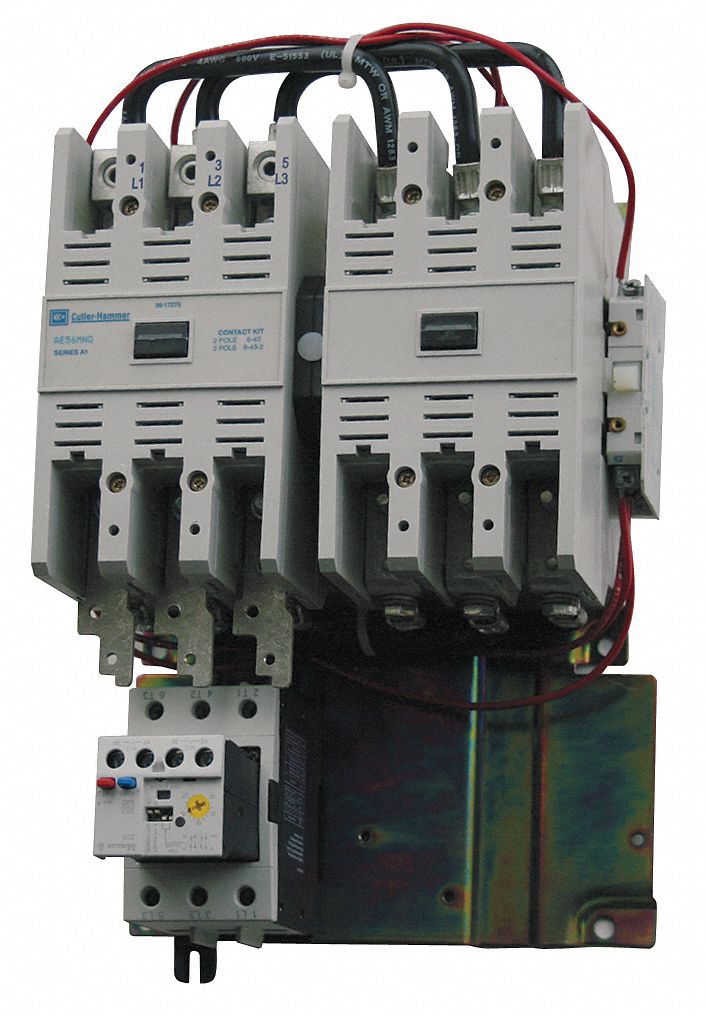

Eaton AN59NN0A5E140 NEMA Magnetic Motor Starter, Reversing, 3 Poles, NEMA Size 4, 135 A, 120V AC Coil

Eaton AN59NN0A5E140 NEMA Magnetic Motor Starter, Reversing, 3 Poles, NEMA Size 4, 135 A, 120V AC Coil

UPC: 786685575179 | Harmonization / Schedule B : 8536.50.4000

Country of Origin: Dominican Republic | Shipping Weight: 68.3 lbs

$13,496.36 - $13,496.36
$13,496.36
$13,496.36 - $13,496.36
$13,496.36

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 140 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 28 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Reversing, Maximum Voltage Rating 600V AC

Auxiliary Contact Form 1NO
Coil Voltage 120V AC
Number of Poles 3
Full Load Current - Inductive 140 A
Reversing Capability Reversing
Terminal Connection Type Screw
Number of Auxillary Contacts 1
Standards ATEX Compliant 94/9/EC, Equipment Group 2, Category 2, CE, CSA, IEC/EN 60947 VDE 0660, ISO 13849-1 (EN954-1), RoHS, UL Listed
Includes Auxiliary Contact, Contactor, Electronic Overload
HP @ 3 Phase - 575V 100 hp
NEMA Size 4
Accessory Group Freedom
Thermal Unit Code Not Applicable
Trip Class 10A/10/20/30
Horsepower @ Three Phase - 480V AC 100 hp
Mounting Postion Horizontal
IP Rating IP20
Hazardous Location Specification Not Applicable
Horsepower @ Three Phase - 240V AC 50 hp
Horsepower @ Single Phase - 240V AC Not Rated
Maximum Overload Relay Current Setting 140 A
Mounting Style Surface
Frequency 50/60 Hz
Includes Auxiliary Contacts Yes
Series Freedom
Maximum Voltage Rating 600V AC
Overall Width 7.1 in
Overall Depth 7 in
Minimum Overload Relay Current Setting 28 A
Operator Function Not Applicable
Horsepower @ Three Phase - 208V AC 40 hp
Horsepower @ Three Phase - 600V AC 100 hp
Overall Height 17 in
Overload Protection Type Electronic
Operator None
Frame Size S4
Status Indicator LED Indicator
Horsepower @ Single Phase - 120V AC Not Rated
Starter Style NEMA
Current AC 135 A
Auxiliary Contact Module Capacity 6
NEMA Enclosure Rating No Enclosure
Phase Three
Package Quantity 1
Country of Origin Dominican Republic
