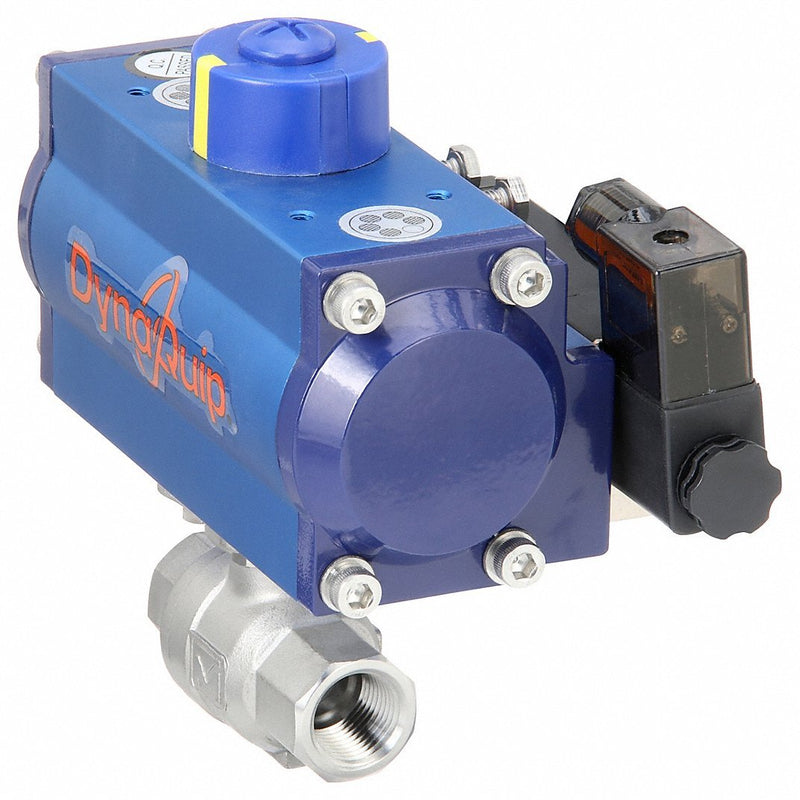

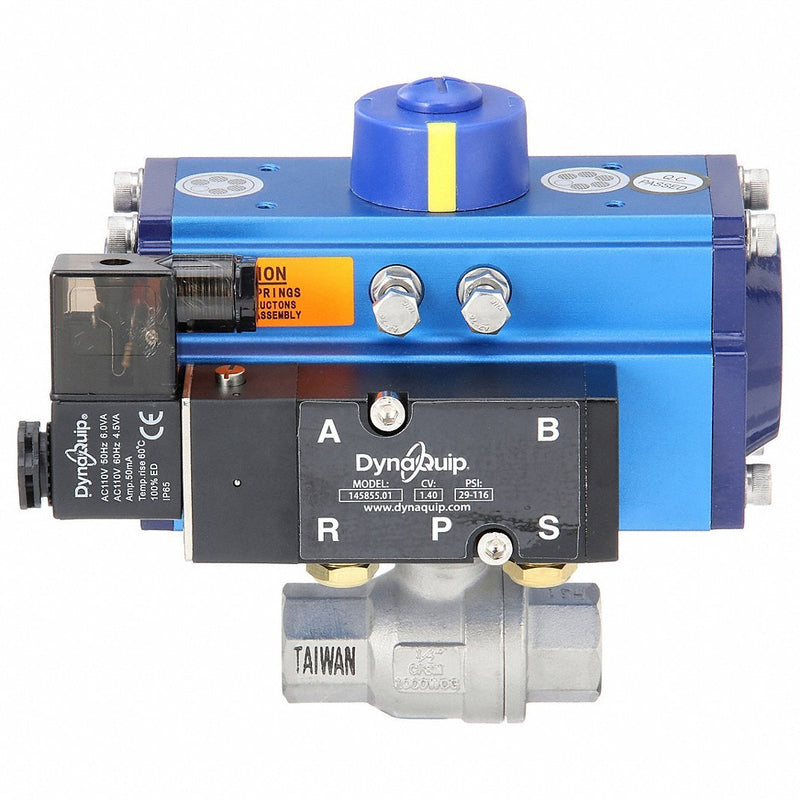

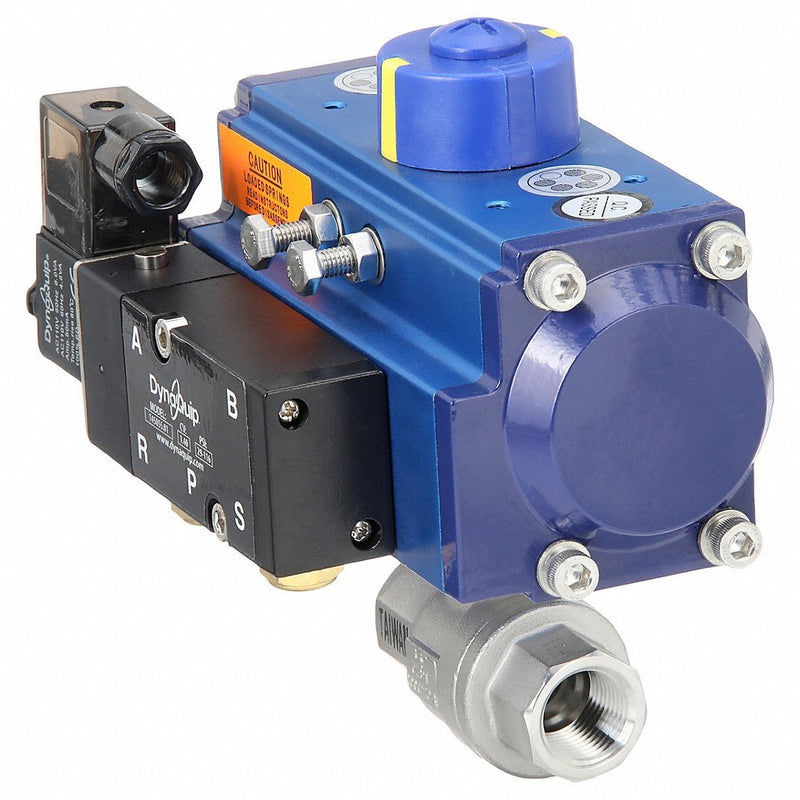

Dynaquip P2S23AJSR05210A Pneumatically Actuated Two-Way Ball Valve 1/2 in, Stainless Steel, FNPT x FNPT

Pneumatically Actuated Two-Way Ball Valve, Nominal Valve Size 1/2 in, Actuator Operation Air to Spring, Ball Material 316 Stainless Steel, Valve Deactivated State Normally Closed (NC), Fail Safe Position Fail Closed, Included Pilot Solenoid 115V AC Pilot Solenoid, Valve Body Style Straight, Body Material Stainless Steel, Average Surface Roughness (Ra) Not Applicable, Ball Port Style Full Port, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam 150 psi

Standards	ASTM A351-CF8M, CSA, IAPMO/UPC, REACH, RoHS Compliant	Port	Full
Max. Inlet Pressure	120 psi	Operation	Spring Return
Ball Material	316 Stainless Steel	Temp. Range	-4 Degrees to 176 Degrees F
Seat Material	PTFE, RPTFE	Ball Valve Product Group	Actuated
Mount	Direct	Body Style	Inline
Max. Pressure	1000 psi CWP	Stem Material	316 Stainless Steel
Required Pressure	80 psi	Connection Type	FNPT
Valve Structure	2-Piece	Max. Steam Pressure	150 psi WSP
Ball Valve Basic Body Material	Stainless Steel	Body Seal Material	PTFE/Viton
Seal Material	PTFE, FKM	Actuator Air Pressure - Minimum	80 psi
Actuator Air Pressure - Maximum	500 psi	Valve Body Style	Straight
Operating Temperature - Minimum	-4 Degrees F	Coefficient of Volume (Cv)	37
Valve Deactivated State	Normally Closed (NC)	Maximum Operating Pressure Differential	500 psi
For Media	Air, Oil, Water	Connection Type - Side 1	NPT
Connection Gender - Side 2	Female	Actuator Features	Position Indicator
Valve Construction	Two-Piece	3-A Standard Compliance	Not Rated
Manufacturer Warranty	2 yr	IP Rating	IP65
Operating Temperature - Maximum	392 Degrees F	Ball Port Style	Full Port
Connection Gender - Side 1	Female	Maximum Pressure - Steam	150 psi
Actuator Ambient Temperature - Minimum	-4 Degrees F	Connection Type - Side 2	NPT
NEMA Enclosure Rating	4, 4X	Maximum Pressure - Combustible Gas	Not Rated
Actuator Ambient Temperature - Maximum	176 Degrees F	Fail Safe Position	Fail Closed
Maximum Pressure - Operating	1,000 psi	Vacuum Service Rating	29 in Hg
Actuator Series	HP	Included Pilot Solenoid	115V AC Pilot Solenoid
Valve Ways	2-Way	Included Mounting	Actuator Mounting Pad
Actuator Operation	Air to Spring	Vented Ball Valve	Non-Vented
Valve Series	P2S
