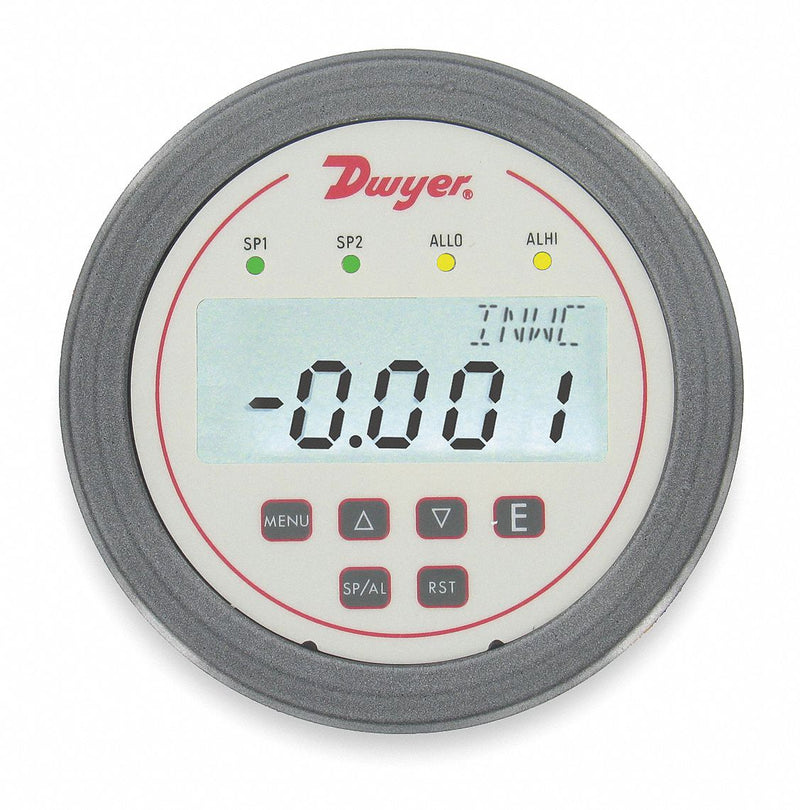

Dwyer DHC-006 Digital Panel Meter, 9,999 Display Span - Max, 12 V AC – 28 V AC, 12 V DC – 28 V DC, (2) SPDT

Dwyer DHC-006 Digital Panel Meter, 9,999 Display Span - Max, 12 V AC – 28 V AC, 12 V DC – 28 V DC, (2) SPDT

UPC: | Harmonization / Schedule B : 9032.89.6050

Country of Origin: United States | Shipping Weight: 2.4 lbs

$677.61 - $677.61
$677.61
$677.61 - $677.61
$677.61

Digital Panel Meter, Pressure, Input Range 0 to 2.5 in WC, Accuracy +/-1.5 Percent, Display Span 9999, Display Digits Selectable, 4 Digit LCD Display, 2 SPDT Relays, True RMS -, - Excitation, Use With -, Fits 4-3/4 in Round Cut Out, Connector Type Compression Fitting, Process Connection 1/8 in ID Tubing, Power Required 12 to 28VAC, 12 to 28VDC, Not Applicable Interface, Output 4 to 20 mA DC, Depth 3.125 in, Mounting Front Ring, Style -, Includes Instructions

Depth 3.125 in
Cutout Diameter 4 3/4 in
Cutout DIN Size 1/8
Overall Depth 2.69 in
Digit Height - Maximum 0.4 in
Type Pressure
Input Range 0 to 2.5 in WC
Accuracy +/-1.5%
Display Span 9999
Display 4 Digit LCD
Relays 2 SPDT
Display Digits Selectable
Includes Instructions
Connector Type Compression Fitting
Mounting Front Ring
Fits 4-3/4 in Round Cut Out
Power Required 12 to 28VAC, 12 to 28VDC
Output 4 to 20 mA DC
Process Connection 1/8 in ID Tubing
Standards CE
Series DH3
Display Span - Maximum 9,999
Relay DC Contact Rating 1.00 A @ 30V AC/DC
Digital Display Screen Color Black
Pressure Display - Minimum 0 in wc
Product Type Differential Pressure Controller
Relay Contact Form (2) SPDT
Terminal Connection Type Pin
DC Voltage Input - Maximum 28 V DC
Pressure Display - Maximum 2.5 in wc
Number of Display Digits 4
Relay AC Contact Rating 1.00 A @ 30V AC/DC
NEMA Enclosure Rating 4X
AC Voltage Input - Maximum 28 V AC
Digital Display Screen Type LCD
AC Voltage Input - Minimum 12 V AC
DC Voltage Input - Minimum 12 V DC
Country of Origin United States
