| Application |
Aerospace Gasketing, Industrial Ovens |
| Color |
Red |
| Substrates |
Aluminum, Glass, Metal, Painted Surfaces, Plywood, Steel, Tile |
| Temp. Range |
-85 To 500 Degrees F |
| For Use On |
Critical Bonding, Sealing, Potting, Encapsulating and Protective Coatings |
| Sealant Base |
Silicone |
| Item |
Gasket Sealant |
| Type |
Multipurpose |
| Full Cure |
24 hr |
| Begins to Harden |
10 min |
| Standards |
FDA 21 CFR 177.2600, MIL-A-46106, NSF 51, UL 94 HB |
| Expansion Ratio |
None |
| Characteristics |
All Weather Performance, Medium Modulus, VOC Compliant |
| Specific Gravity |
1.04 |
| Container Type |
Pail |
| Tensile Strength |
350 psi |
| Chemical Base |
Silicone Elastomer |
| Product Type |
Heat Resistant Sealant |
| Resistance Sensor Safe and Standards |
Non-Sagging NoFDA 21 CFR 177.2600, Non-Sagging NoMIL-A-46106, Non-Sagging NoNSF 51, Non-Sagging NoUL 94 HB |
| Product Form |
Paste |
| Working Time |
10 min |
| Shelf Life |
2.5 yr |
| Brand & Series |

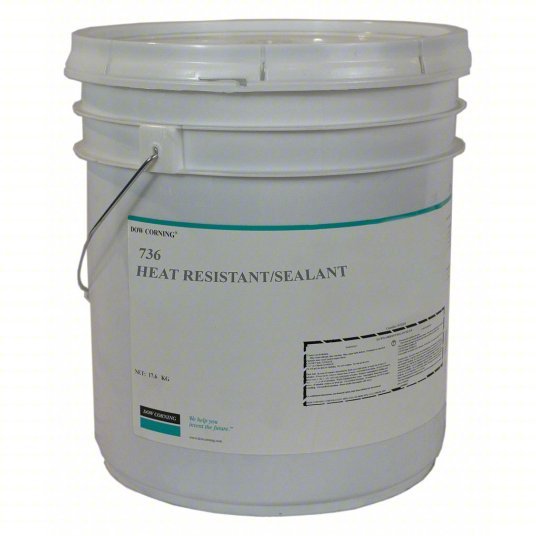

DOW CORNING 736 |
| Properties |
For Food and Beverage Processing |
| Hardness |
Shore A26 |
| Storage Requirements |
Less Than90 Degrees F |
| Cure Type |
Room Temperature |
| Minimum Application Temperature |
500 Degrees F |
| Sealant Type |
Gasket Sealant |
| Non-Toxic |
No |
| Full Cure Time |
1 day |
| Resistance Properties |
Non-Sagging |
| Working Time Range |
6 min to 30 min |
| Min Operating Temperature |
-89 to -80 Degrees F |
| Maximum Operating Temperature |
500 Degrees F |
| Minimum Operating Temperature |
-85 Degrees F |
| Sensor Safe |
No |
| Maximum Application Temperature |
600 Degrees F |
| Consistency |
Paste |
| Operating Temperature Range |
-85 Degrees F to 500 Degrees F |
| Color Family |
Red |
| For Material Type |
Aluminum, Glass, Metal, Painted Surfaces, Plywood, Steel, Tile |
| Compatible Materials |
Concrete and Masonry, Glass and Fiberglass, Metal, Painted Surfaces, Paper and Wood |
| Series |
736 |
