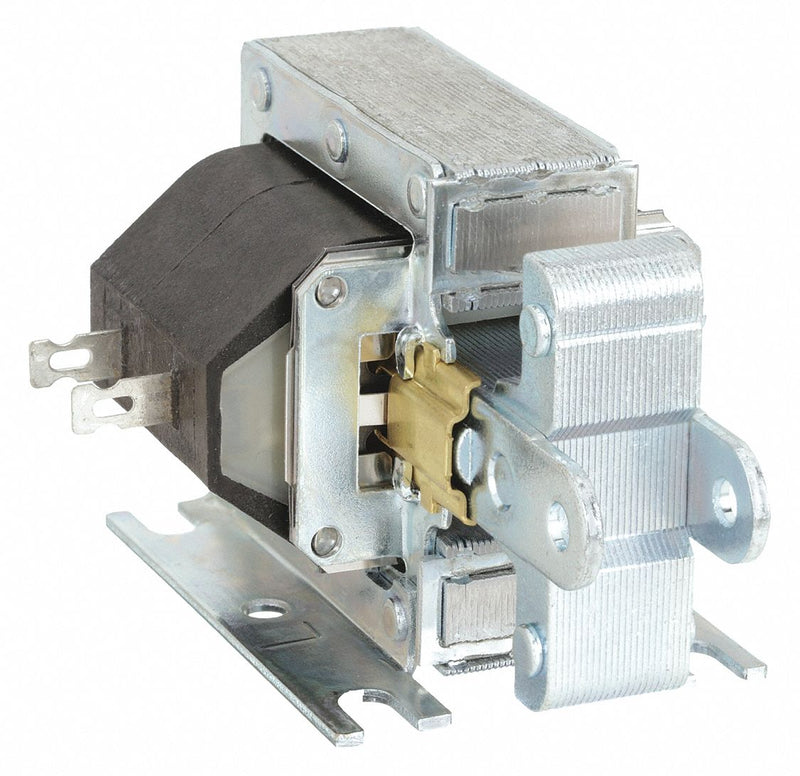

Dormeyer 2005-M-1 Solenoid, 120V AC, 1/8 in to 1 in, 64.0 to 128.0 oz, 2 1/16 in Dp, 2 1/2 in Lg, 1 13/16 in Wd

Dormeyer 2005-M-1 Solenoid, 120V AC, 1/8 in to 1 in, 64.0 to 128.0 oz, 2 1/16 in Dp, 2 1/2 in Lg, 1 13/16 in Wd

UPC: | Harmonization / Schedule B : 8505.90.7501

Country of Origin: United States | Shipping Weight: 1.1 lbs

$51.07 - $51.07
$51.07
$51.07 - $51.07
$51.07

Solenoid, Laminated, Stroke Range 1/8 in to 1 in, Pull Force Range 64.0 to 128.0 oz, Width 1 13/16 in, Depth 2 1/16 in, Length 2 1/2 in, Coil Volts 120V AC, Seated Amps 0.43 A, Seated Watts 17.9 W, Coil Resistance 20.5 ohm, Terminals Solder Lug Coil, Amps @ Max. Stroke 4.9 A, Duty Cycle Continuous, Mounting Holes 2 x 1-3/8 in, 4.32 oz Gravity Value

Depth 2 1/16 in
Length 2 1/2 in
Width 1 13/16 in
Length (Straight Wireway) 2 1/2 in
Solenoid Type Laminated
Stroke Range 1/8 in to 1 in
Pull Force Range 64.0 to 128.0 oz
Amps @ Max. Stroke 4.9 A
Terminals Solder Lug Coil
Coil Volts 120V AC
Duty Cycle Continuous
Gravity Value 4.32 oz
Seated Watts 17.9 W
Pull @ 3/8 In. Stroke 1 oz
Pull @ 1/8 In. Stroke 3 oz
Mounting Holes 2 x 1-3/8 in
Seated Amps 0.43 A
Pull @ 1/4 In. Stroke 2 oz
Coil Resistance 20.5 ohm
Country of Origin United States
