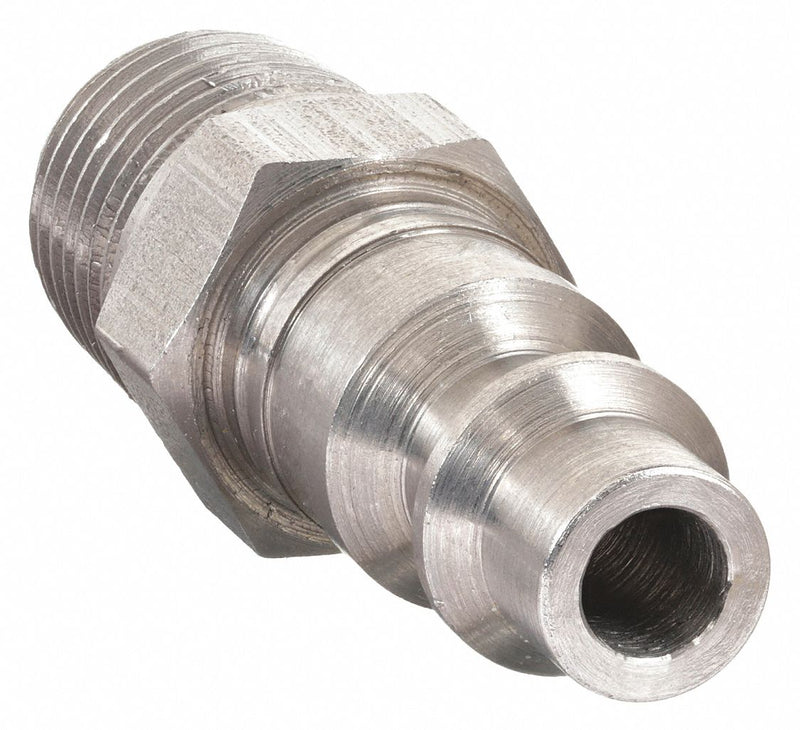

Dixon D3M3-S Industrial Quick Connect Plug 3/8 in MNPT Stainless Steel

Dixon D3M3-S Industrial Quick Connect Plug, 3/8 in Body, 3/8 in MNPT, 303 Stainless Steel, 500 psi

UPC: | Harmonization / Schedule B : 7307.22.1000

Country of Origin: United States | Shipping Weight: 0.09 lbs

$23.86 - $23.86
$23.86
$23.86 - $23.86
$23.86

Industrial interchange stainless steel quick-connect air coupling plugs are the male end of coupling sets. Also called nipples, they're inserted into the coupling bodies (female ends) to connect tools to air lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Stainless steel couplings withstand pressure and high temperatures.

Interchange Type Industrial
Material 303 Stainless Steel
Coupling Component Plug
Hose Fitting Gender Male
Connection Type NPT
Fitting Type MNPT
Hose Fitting Size 3/8 in
For Hose I.D. 3/8 in
Body Size 3/8 in
Thread Size 3/8"-18
Finish/Coating Zinc Plated
Color Silver
Barbed No
Includes Valve No
Max. Working Pressure @ 70 °F 500 psi
Max. Flow Rate 1,274.25 lpm
Coupling Locking Type Sleeve
Seal Material Nitrile
Overall Length 1-7/8 in
Max. Outside Dia. 7/8 in
Temp. Range -40° to 250°F
Country of Origin United States
