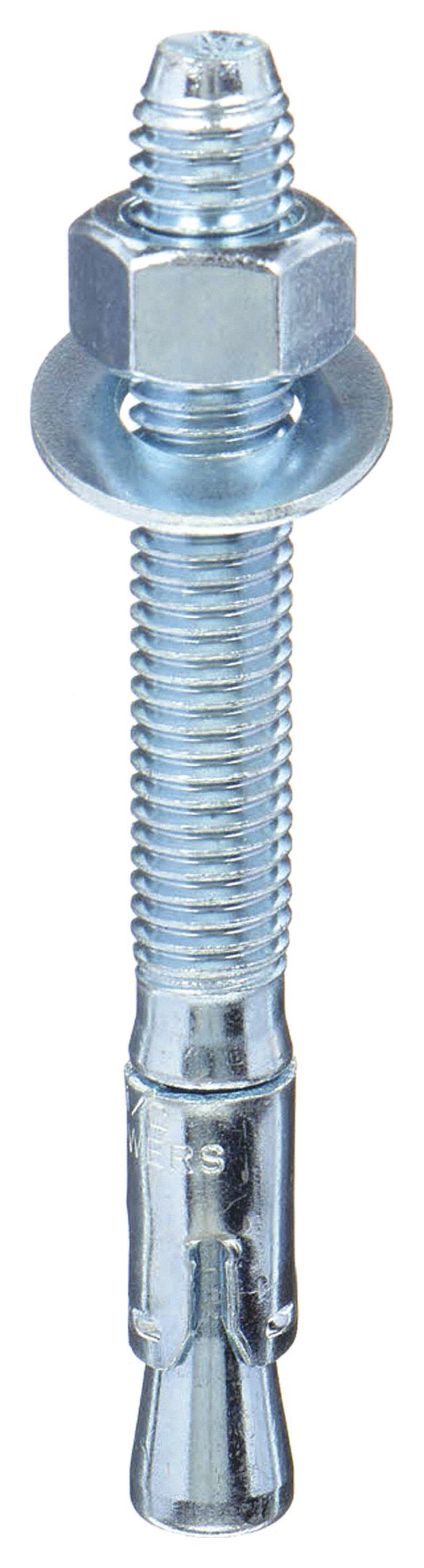

DEWALT 7433SD1-PWR Wedge Anchor, 5 in Overall Lg, 5/8 in Dia, 5/8"-11 Thread Size, 3 in Thread Lg, Steel, 25 PK

DEWALT 7433SD1-PWR Wedge Anchor, 5 in Overall Lg, 5/8 in Dia, 5/8"-11 Thread Size, 3 in Thread Lg, Steel, 25 PK

UPC: 075352776217 | Harmonization / Schedule B : 7318.15.2000

Country of Origin: China | Shipping Weight: 11.83 lbs

$96.92 - $96.92
$96.92
$96.92 - $96.92
$96.92

Wedge Anchor, System of Measurement Inch, Anchor Diameter 5/8 in, Thread Size 5/8 In.-11, Overall Length 5 in, Thread Length 3 in, Material Steel, Material Grade/Class Medium Carbon, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 5/8 in, Minimum Installation Depth 2 3/4 in, Minimum Material Thickness 6 in, Nut Width 0.9375 in, Washer Outside Diameter 1.3125 in, Wedge Anchor Type Wedge Anchor, Seismic Approved Yes, ICC Approved for Cracked Concrete Yes

Anchor Diameter 5/8"
Overall Length 5"
Drill Bit Size 5/8 in
Thread Size 5/8"-11
Minimum Installation Depth 2-3/4"
Maximum Material Thickness 1-5/8"
Thread Length 3 in
Nut Width 0.9375 in
Minimum Material Thickness 6 in
Washer Outside Diameter 1.3125 in
Wire Rope Length 5 in
CAD Available Yes
Compatible Material Concrete
Sub-Brand Power-Stud+ SD1
Material Carbon Steel
Finish Zinc Plated
Seismic Approved Yes
ICC Approved for Cracked Concrete Yes
Ultimate Pullout (Lb.) 5,440 lb
Ultimate Shear (Lb.) 6,815 lb
ICC Approved for Un-Cracked Concrete Yes
Embedment In Concrete 2 3/4 in
Ultimate Tension (Lbs.) 5,440 lb
Includes Nut, Washer
Ultimate Tension in 3000 PSI Concrete (Lb.) 5,440 lb
Ultimate Shear in 3000 PSI Concrete (Lb.) 6,815 lb
Material Grade Medium Carbon
Industry Standards 2012 IBC/IRC, 2015 IBC/IRC, 2018 IBC/IRC, 2021 IBC/IRC, FM Approved, ICC-ES AC01, UL Listed
Wedge Anchor Type Wedge Anchor
Material Quality Standards ASTM E-488
Thread Type Coarse
Series Power-Stud+ SD1
System of Measurement Inch
Manufacturer Location Globally Sourced
Maximum Installation Torque 50 ft-lb
Thread Style Fully Threaded
Minimum Installation Torque 50 ft-lb
Material Grade/Class Medium Carbon
Country of Origin Multiple
