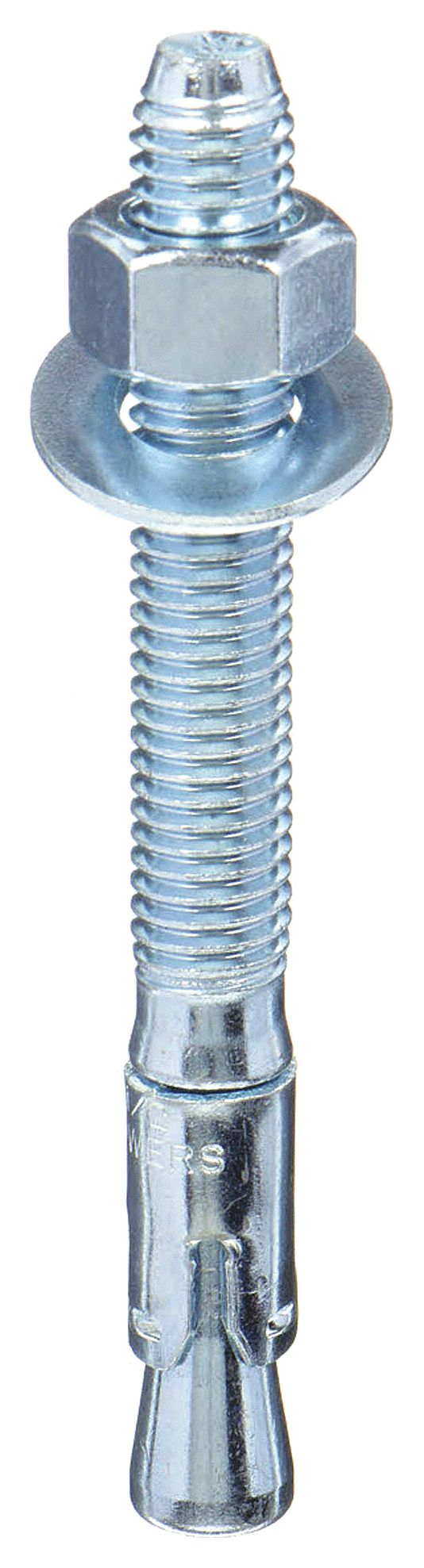

DEWALT 7424SD1-PWR Wedge Anchor, 5 1/2 in Overall Lg, 1/2 in Dia, 1/2"-13 Thread Size, 3 3/4 in Thread Lg, 50 PK

DEWALT 7424SD1-PWR Wedge Anchor, 5 1/2 in Overall Lg, 1/2 in Dia, 1/2"-13 Thread Size, 3 3/4 in Thread Lg, 50 PK

UPC: 075352776118 | Harmonization / Schedule B : 7318.15.2000

Country of Origin: China | Shipping Weight: 15.36 lbs

$125.35 - $125.35
$125.35
$125.35 - $125.35
$125.35

Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Thread Size 1/2 In.-13, Overall Length 5 1/2 in, Thread Length 3 3/4 in, Material Steel, Material Grade/Class Medium Carbon, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 1/2 in, Minimum Installation Depth 2 1/4 in, Minimum Material Thickness 4 in, Nut Width 0.75 in, Washer Outside Diameter 1.0625 in, Wedge Anchor Type Wedge Anchor, Seismic Approved Yes, ICC Approved for Cracked Concrete Yes

Anchor Diameter 1/2"
Overall Length 5-1/2"
Drill Bit Size 1/2 in
Thread Size 1/2"-13
Minimum Installation Depth 2-1/4"
Maximum Material Thickness 2-3/4"
Thread Length 3 3/4 in
Washer Outside Diameter 1.0625 in
Nut Width 0.75 in
Minimum Material Thickness 4 in
Wire Rope Length 5 1/2 in
CAD Available Yes
Compatible Material Concrete
Sub-Brand Power-Stud+ SD1
Material Carbon Steel
Finish Zinc Plated
Seismic Approved Yes
ICC Approved for Cracked Concrete Yes
Ultimate Pullout (Lb.) 4,155 lb
Embedment In Concrete 2 1/4 in
Includes Nut, Washer
Ultimate Tension (Lbs.) 4,155 lb
Ultimate Tension in 3000 PSI Concrete (Lb.) 4,155 lb
Ultimate Shear (Lb.) 4,195 lb
ICC Approved for Un-Cracked Concrete Yes
Ultimate Shear in 3000 PSI Concrete (Lb.) 4,195 lb
Material Grade Medium Carbon
Industry Standards 2012 IBC/IRC, 2015 IBC/IRC, 2018 IBC/IRC, 2021 IBC/IRC, FM Approved, ICC-ES AC01, UL Listed
Wedge Anchor Type Wedge Anchor
Material Quality Standards ASTM E-488
Minimum Installation Torque 40 ft-lb
Material Grade/Class Medium Carbon
System of Measurement Inch
Thread Type Coarse
Maximum Installation Torque 40 ft-lb
Thread Style Fully Threaded
Manufacturer Location Globally Sourced
Series Power-Stud+ SD1
Country of Origin Multiple
