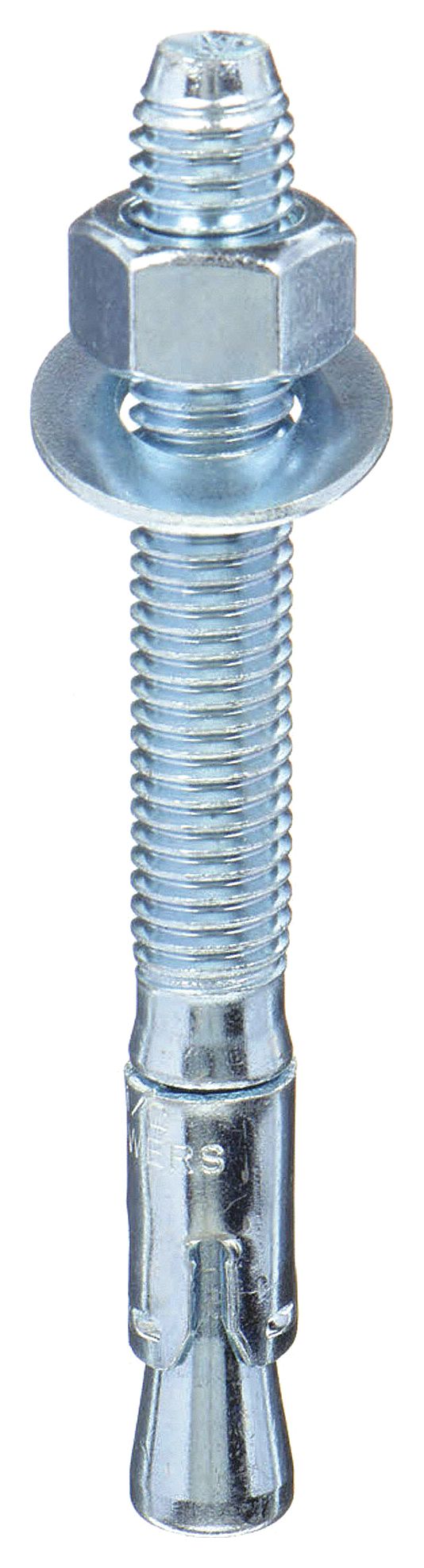

DEWALT 7423SD1-PWR Wedge Anchor, 4 1/2 in Overall Lg, 1/2 in Dia, 1/2"-13 Thread Size, 2 3/4 in Thread Lg, 50 PK

DEWALT 7423SD1-PWR Wedge Anchor, 4 1/2 in Overall Lg, 1/2 in Dia, 1/2"-13 Thread Size, 2 3/4 in Thread Lg, 50 PK

UPC: 075352776095 | Harmonization / Schedule B : 7318.15.2000

Country of Origin: China | Shipping Weight: 13.28 lbs

$100.16 - $100.16
$100.16
$100.16 - $100.16
$100.16

Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Thread Size 1/2 In.-13, Overall Length 4 1/2 in, Thread Length 2 3/4 in, Material Steel, Material Grade/Class Medium Carbon, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 1/2 in, Minimum Installation Depth 2 1/4 in, Minimum Material Thickness 4 in, Nut Width 0.75 in, Washer Outside Diameter 1.0625 in, Wedge Anchor Type Wedge Anchor, Seismic Approved Yes, ICC Approved for Cracked Concrete Yes

Anchor Diameter 1/2"
Overall Length 4-1/2"
Drill Bit Size 1/2 in
Thread Size 1/2"-13
Minimum Installation Depth 2-1/4"
Maximum Material Thickness 1-3/4"
Thread Length 2 3/4 in
Washer Outside Diameter 1.0625 in
Minimum Material Thickness 4 in
Nut Width 0.75 in
Wire Rope Length 4 1/2 in
CAD Available Yes
Compatible Material Concrete
Sub-Brand Power-Stud+ SD1
Material Carbon Steel
Finish Zinc Plated
Seismic Approved Yes
ICC Approved for Cracked Concrete Yes
Ultimate Pullout (Lb.) 4,155 lb
Includes Nut, Washer
ICC Approved for Un-Cracked Concrete Yes
Ultimate Tension in 3000 PSI Concrete (Lb.) 4,155 lb
Ultimate Shear (Lb.) 4,195 lb
Ultimate Tension (Lbs.) 4,155 lb
Ultimate Shear in 3000 PSI Concrete (Lb.) 4,195 lb
Embedment In Concrete 2 1/4 in
Material Grade Medium Carbon
Industry Standards 2012 IBC/IRC, 2015 IBC/IRC, 2018 IBC/IRC, 2021 IBC/IRC, FM Approved, ICC-ES AC01, UL Listed
Wedge Anchor Type Wedge Anchor
Maximum Installation Torque 40 ft-lb
System of Measurement Inch
Manufacturer Location Globally Sourced
Thread Style Fully Threaded
Minimum Installation Torque 40 ft-lb
Material Grade/Class Medium Carbon
Thread Type Coarse
Material Quality Standards ASTM E-488
Series Power-Stud+ SD1
Country of Origin Multiple
