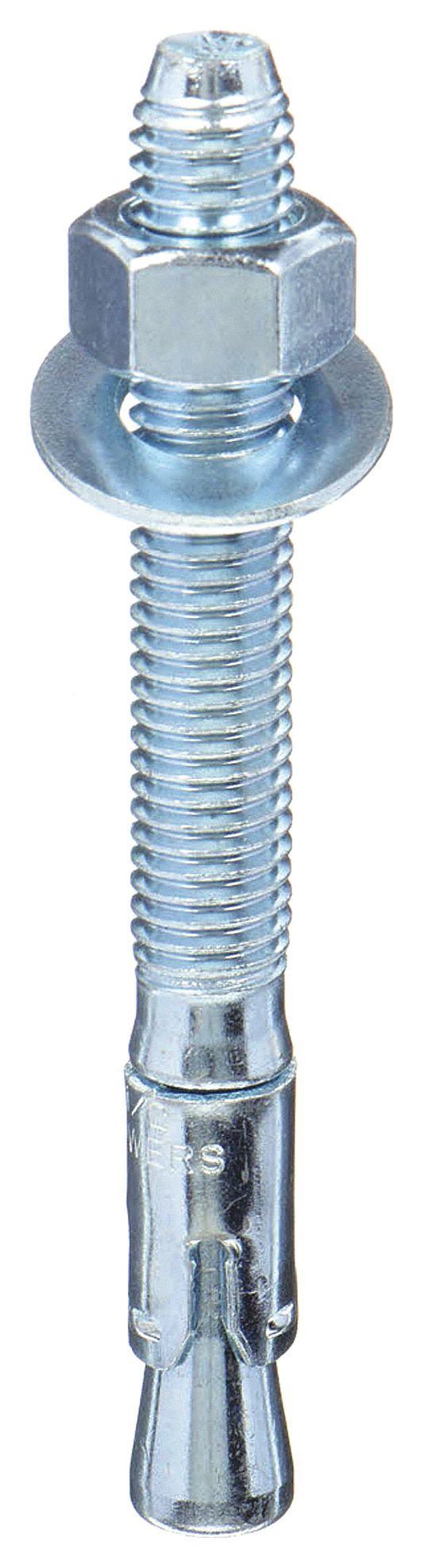

DEWALT 7416SD1-PWR Wedge Anchor, 5 in Overall Lg, 3/8 in Dia, 3/8"-16 Thread Size, 3 5/8 in Thread Lg, 50 PK

DEWALT 7416SD1-PWR Wedge Anchor, 5 in Overall Lg, 3/8 in Dia, 3/8"-16 Thread Size, 3 5/8 in Thread Lg, 50 PK

UPC: 075352775852 | Harmonization / Schedule B : 7318.15.2000

Country of Origin: China | Shipping Weight: 7.64 lbs

$70.13 - $70.13
$70.13
$70.13 - $70.13
$70.13

Wedge Anchor, System of Measurement Inch, Anchor Diameter 3/8 in, Thread Size 3/8 In.-16, Overall Length 5 in, Thread Length 3 5/8 in, Material Steel, Material Grade/Class Medium Carbon, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 3/8 in, Minimum Installation Depth 1 5/8 in, Minimum Material Thickness 3 3/4 in, Nut Width 0.5625 in, Washer Outside Diameter 0.8125 in, Wedge Anchor Type Wedge Anchor, Seismic Approved Yes, ICC Approved for Cracked Concrete Yes

Anchor Diameter 3/8"
Overall Length 5"
Drill Bit Size 3/8 in
Thread Size 3/8"-16
Minimum Installation Depth 1-5/8"
Maximum Material Thickness 3"
Thread Length 3 5/8 in
Minimum Material Thickness 3 3/4 in
Washer Outside Diameter 0.8125 in
Nut Width 0.5625 in
Wire Rope Length 5 in
CAD Available Yes
Compatible Material Concrete
Sub-Brand Power-Stud+ SD1
Material Carbon Steel
Finish Zinc Plated
Seismic Approved Yes
ICC Approved for Cracked Concrete Yes
Ultimate Pullout (Lb.) 2,685 lb
Ultimate Shear in 3000 PSI Concrete (Lb.) 2,540 lb
Embedment In Concrete 1 5/8 in
Ultimate Shear (Lb.) 2,540 lb
ICC Approved for Un-Cracked Concrete Yes
Ultimate Tension (Lbs.) 2,685 lb
Ultimate Tension in 3000 PSI Concrete (Lb.) 2,685 lb
Includes Nut, Washer
Material Grade Medium Carbon
Industry Standards 2012 IBC/IRC, 2015 IBC/IRC, 2018 IBC/IRC, 2021 IBC/IRC, FM Approved, ICC-ES AC01, UL Listed
Wedge Anchor Type Wedge Anchor
Material Grade/Class Medium Carbon
Manufacturer Location Globally Sourced
Thread Type Coarse
Series Power-Stud+ SD1
Material Quality Standards ASTM E-488
Minimum Installation Torque 20 ft-lb
System of Measurement Inch
Maximum Installation Torque 20 ft-lb
Thread Style Fully Threaded
Country of Origin Multiple
