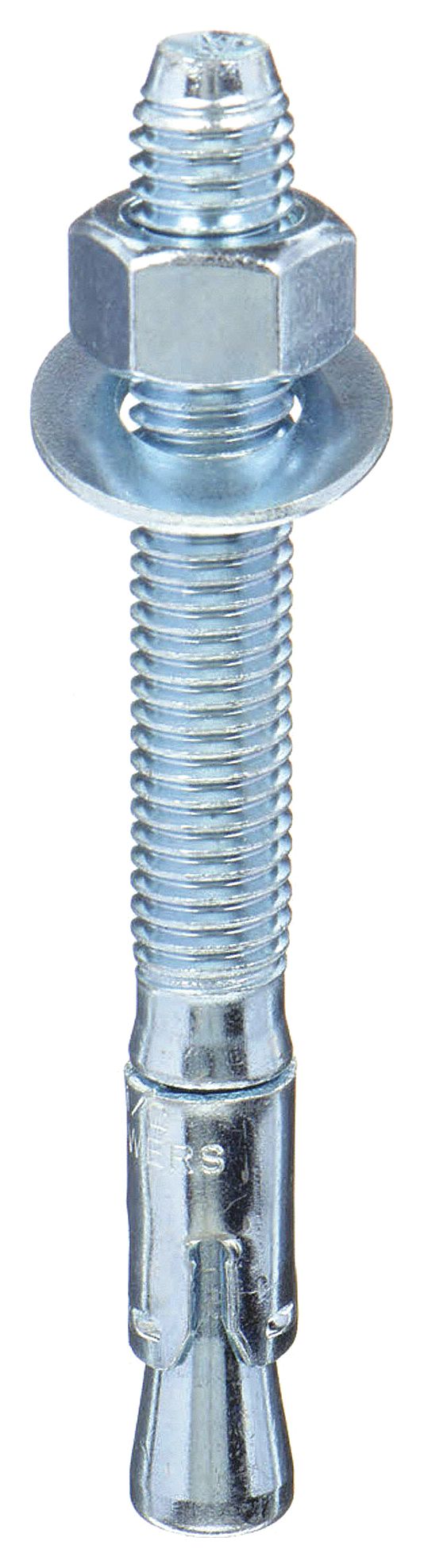

DEWALT 7415SD1-PWR Wedge Anchor, 3 3/4 in Overall Lg, 3/8 in Dia, 3/8"-16 Thread Size, 2 3/8 in Thread Lg, 50 PK

DEWALT 7415SD1-PWR Wedge Anchor, 3 3/4 in Overall Lg, 3/8 in Dia, 3/8"-16 Thread Size, 2 3/8 in Thread Lg, 50 PK

UPC: 075352776019 | Harmonization / Schedule B : 7318.15.2000

Country of Origin: China | Shipping Weight: 6.02 lbs

$53.43 - $53.43
$53.43
$53.43 - $53.43
$53.43

Wedge Anchor, System of Measurement Inch, Anchor Diameter 3/8 in, Thread Size 3/8 In.-16, Overall Length 3 3/4 in, Thread Length 2 3/8 in, Material Steel, Material Grade/Class Medium Carbon, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 3/8 in, Minimum Installation Depth 1 5/8 in, Minimum Material Thickness 3 3/4 in, Nut Width 0.5625 in, Washer Outside Diameter 0.8125 in, Wedge Anchor Type Wedge Anchor, Seismic Approved Yes, ICC Approved for Cracked Concrete Yes

Anchor Diameter 3/8"
Overall Length 3-3/4"
Drill Bit Size 3/8 in
Thread Size 3/8"-16
Minimum Installation Depth 1-5/8"
Maximum Material Thickness 1-3/4"
Thread Length 2 3/8 in
Minimum Material Thickness 3 3/4 in
Washer Outside Diameter 0.8125 in
Nut Width 0.5625 in
Wire Rope Length 3 3/4 in
CAD Available Yes
Compatible Material Concrete
Sub-Brand Power-Stud+ SD1
Material Carbon Steel
Finish Zinc Plated
Seismic Approved Yes
ICC Approved for Cracked Concrete Yes
Ultimate Pullout (Lb.) 2,685 lb
Ultimate Tension (Lbs.) 2,685 lb
ICC Approved for Un-Cracked Concrete Yes
Includes Nut, Washer
Ultimate Shear in 3000 PSI Concrete (Lb.) 2,540 lb
Embedment In Concrete 1 5/8 in
Ultimate Tension in 3000 PSI Concrete (Lb.) 2,685 lb
Ultimate Shear (Lb.) 2,540 lb
Material Grade Medium Carbon
Industry Standards 2012 IBC/IRC, 2015 IBC/IRC, 2018 IBC/IRC, 2021 IBC/IRC, FM Approved, ICC-ES AC01, UL Listed
Wedge Anchor Type Wedge Anchor
Maximum Installation Torque 20 ft-lb
Thread Type Coarse
Thread Style Fully Threaded
Series Power-Stud+ SD1
Material Quality Standards ASTM E-488
Minimum Installation Torque 20 ft-lb
System of Measurement Inch
Manufacturer Location Globally Sourced
Material Grade/Class Medium Carbon
Country of Origin China
