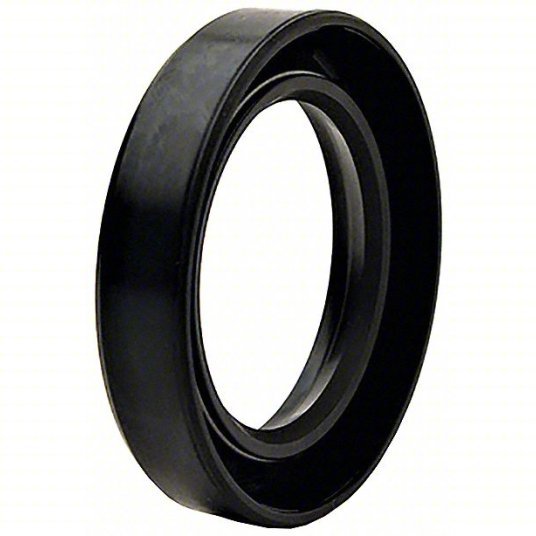

DDS IN60.3288.99.52SC Rotary Shaft Seal 1 Lip w/Spring, SC, Nitrile, 2.375 in ID, 3.5 in OD, 0.375 in Wd

UPC: | Harmonization (Schedule B): 4017.00.0000

Original price $28.62 - Original price $28.62
Original price
$28.62 - $28.62
Current price $28.62
Rotary Shaft Seal, Design Code SC, Inside Diameter 2.375 in, Outside Diameter 3.5 in, Overall Width 0.375 in, Contact Type Contact Seal, Lip Material Nitrile Rubber, Maximum Pressure 7 psi, Number of Lips 1, System of Measurement Inch, Case Coating None
Seal Type Single Lip Seal
Lip Material Nitrile Rubber
Design Code SC
Standards DIN 3760
Max. Pressure 7 psi
Seal Design SC
Spring Type Garter
System of Measurement Inch
For Fluid Type Alcohol, Automatic Transmission Fluid, Cutting Oil, E.P. Lubricants, Engine Oil, Gasoline, Gear Oil, Grease, Hydrochloric Acid Solution, Light Oil/Kerosene, Machine Oil No.2, Petroleum Base Lubricating Oil, Sulfuric Acid Solution, Turbine Oil No.2, Water-Glycol
Hardness 45 HRC @ 4 m/s and 55 HRC @ 10 m/s
Lip Material Application Nitrile Rubber for General Applications
Case Coating None
Contact Type Contact Seal
Spring Reinforcement Yes
Minimum Temperature -40 Degrees F
Maximum Temperature 250 Degrees F
Maximum Pressure 7 psi
Number of Lips 1
