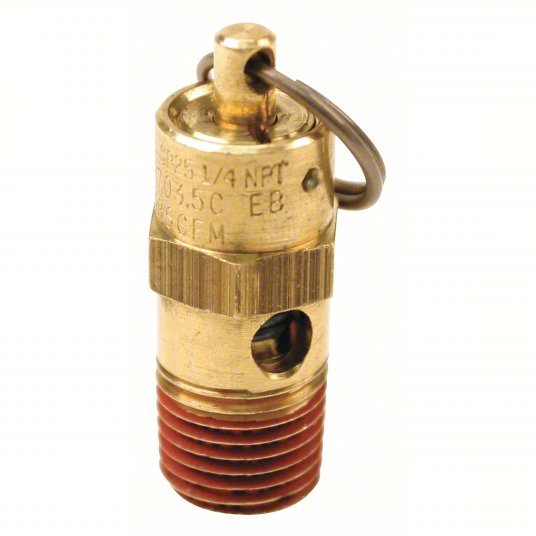

Control Devices SA25-1A200 Air Safety Valve, 1/4 In Inlet, 200 psi - KVM Tools Inc.KV45MG53

Control Devices SA25-1A200 Air Safety Valve, 1/4 In Inlet, 200 psi

UPC: 993309385360 | Harmonization / Schedule B : 8481.40.0000

Country of Origin: United States | Shipping Weight: 0.1 lbs

$16.82 - $16.82
$16.82
$16.82 - $16.82
$16.82
Air Safety Valve, Hard Seat, (M)NPT Inlet (In.) 1/4 in, Preset Setting (PSI) 200 psi, 168 cfm Rated CFM @ Set Pressure, Max. Temp. (F) 400 Degrees F, Brass Body Material, Stainless Steel Seal, Stainless Steel Ball, Stainless Steel Spring, Brass Seat, Vibra Seal Thread Coating, Standards ASME, CRN, NATIONAL BOARD, Compressed Air Safety Relief, High Temp
Valve Type Hard Seat
(M)NPT Inlet (In.) 1/4 in
Preset Setting (PSI) 200 psi
Rated CFM @ Set Pressure 168 cfm
Item Air Safety Valve
Application Compressed Air Safety Relief, High Temp
Spring Stainless Steel
Standards ASME, CRN, NATIONAL BOARD
Seal Stainless Steel
Body Material Brass
Seat Brass
Thread Coating Vibra Seal
Ball Stainless Steel
Max. Temp. (F) 400 Degrees F
