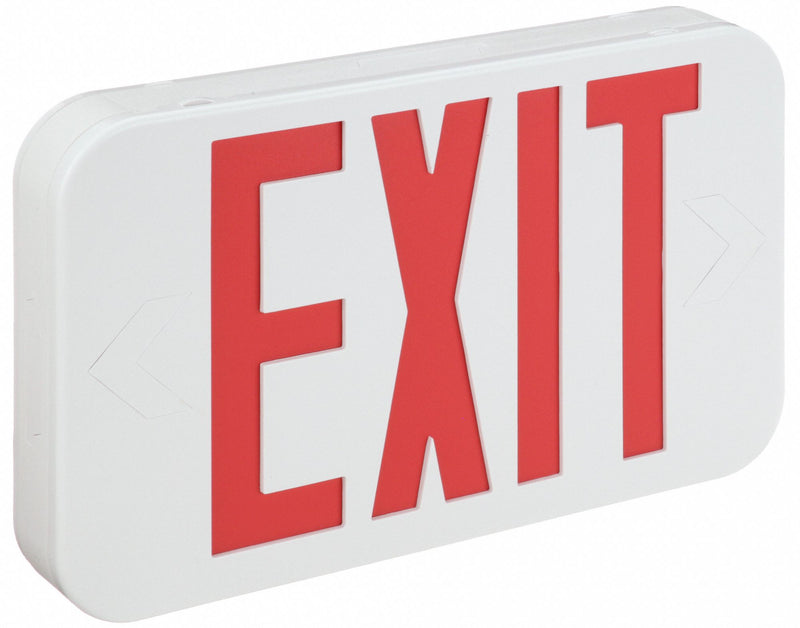

Compass CER Exit Sign, Emergency Battery Backup, LED, White, Red, 1 or 2 Faces, Ceiling/Wall, Nickel Cadmium

Compass CER Exit Sign, Emergency Battery Backup, LED, White, Red, 1 or 2 Faces, Ceiling/Wall, Nickel Cadmium

UPC: 856143001448 | Harmonization / Schedule B : 9405.61.4000

Country of Origin: China | Shipping Weight: 2.31 lbs

$56.33 - $56.33
$56.33
$56.33 - $56.33
$56.33

Exit Sign, Letter Color Red, Number of Faces 1 or 2, Directional Indicators - Emergency Lighting and Exit Signs Universal Field Selectable Chevrons, Lighting Technology LED, Housing Material - Emergency Lighting and Exit Signs Plastic, Housing Color - Emergency Lighting and Exit Signs White, Emergency Back Up Battery Yes, Battery Chemistry Nickel Cadmium, Voltage - Emergency Lighting and Exit Signs 120/277, Number of Lamp Heads 0

Width 11 39/64 in
Height 7 13/64 in
Letter Size 6 in
Depth 2 in
Overall Depth 2 in
Text Size 6 in High
Text Height 6 in
Recommended Mounting Height 8 ft
Manufacturers Warranty Length 2 yr
Overall Width 11 5/8 in
Overall Height 7 1/4 in
Voltage 120/277 V AC
Housing Material Plastic
Number of Faces 1 or 2
Mounting Universal
Lighting Technology LED
Emergency Illumination Time 90 min
Directional Indicators Universal Field Selectable Chevrons
Housing Color White
Battery Chemistry Nickel Cadmium
Letter Color Red
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Includes Canopy
Background Color White
Emergency Back Up Battery Yes
Voltage - Emergency Lighting and Exit Signs 120/277
Fixture Wattage 1.7 W
Lamp Type LED
Directional Indicators - Emergency Lighting and Exit Signs Universal Field Selectable Chevrons
Number of Lamp Heads 0
Battery Type NiCad
Optional Guard No
Housing Material - Emergency Lighting and Exit Signs Plastic
Warranty 2 yr
Item - Emergency Lighting and Exit Signs Exit Sign
Standards NFPA 70 and 101, OSHA, UL924
Operating Temp. Range 32 Degrees to 122 Degrees F
Housing Color - Emergency Lighting and Exit Signs White
Lamp Head Light Source - Emergency Lighting and Exit Signs No Heads
Diagnostic Testing Function Test Button
Remote Capable No
Lamp Wattage 1.8 W
Series CE
Maximum Operating Temperature 122 Degrees F
Text Color Red
Emergency Battery Backup Yes
Environmental Rating Damp Location Rated
Minimum Operating Temperature 32 Degrees F
CA Title 20 Compliant Yes
Compliance Type None
Self Diagnostics No
Lighting Certification Unrated
Country of Origin China
