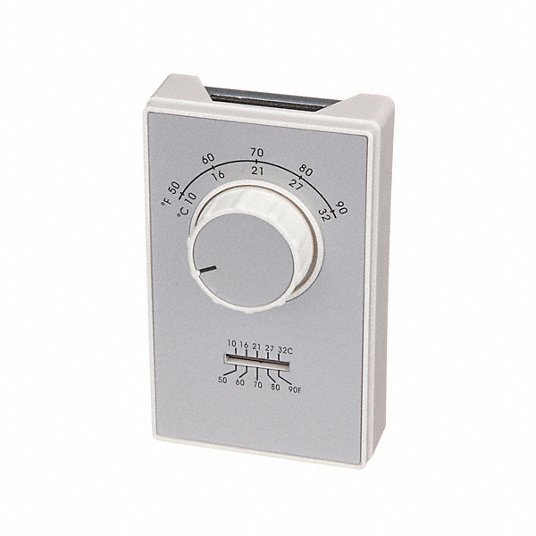

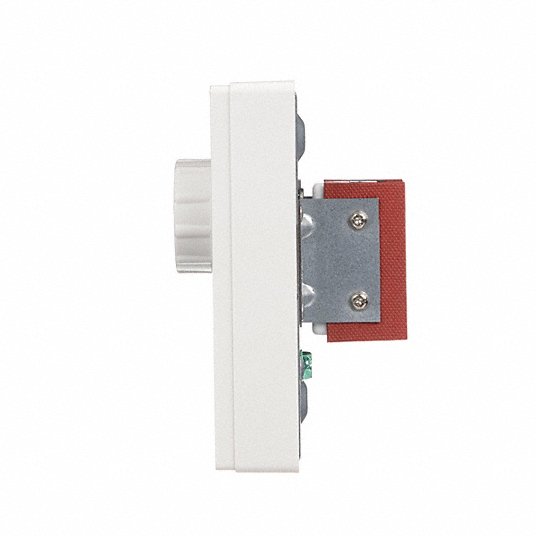

Columbus ETD9STGS Line Volt Mechanical Tstat, Open/Close on Rise, wall, SPDT
Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 50 Degrees to 90 Degrees F, Thermostat Voltage 120 to 277V AC, Full Load Amps @ 120VAC 22 A, Full Load Amps @ 240VAC 22 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 1, Differential 2 to 4 Degrees F, Height 4 3/4 in, Width 2 3/4 in, Depth 1 1/2 in
Switch Action | Open/Close on Rise |
Sensor Type | Bi-Metallic Spring |
Differential | 2 to 4 Degrees F |
Display Type | Analog |
Thermostat Control Range | 50 Degrees to 90 Degrees F |
Mounting Location | wall |
Switch Type | SPDT |
Color | White/Metallic Plate |
Contact Rating Resistive @ 240V | 22 A |
Thermostat Heating/Cooling | Heating/Cooling |
Thermostat Switch Type | SPDT |
Standards | UL and CSA |
Thermostat Voltage | 120 to 277V AC |
Thermostat Programmable | No |
Mounting Type | Vertical |
Contact Rating Resistive @ 277V | 22 A |
Inductive Amps @ 120V | 13.8 A |
Locked Rotor Amps @ 120V | 82.8 A |
Number of Switches | 1 |
Remote Sensing Capability | No |
Thermostat Item | Line Voltage Mechanical Thermostat |
Contact Rating Resistive @ 120V | 22 A |
Full Load Amps @ 120VAC | 22 A |
Includes | Thermometer |
Item | Line Volt Mechanical Tstat |
Full Load Amps @ 240VAC | 22 A |
Remote Sensing Bulb Included | No |
Locked Rotor Amps @ 240V | 60 A |
Inductive Amps @ 240V | 10 A |
For Use With | Blowers, Furnace Fans, Baseboard and Ceiling Heaters |
Display | Analog |
Voltage Range | 120 to 277VAC |
Type | Heating/Cooling |
Compatible System Type | Electric Cooling, Electric Heating |
Temperature Control Range | 50 Degrees to 90 Degrees F |
Number of Cooling Stages | 1 |
Includes Positive Off | No |
System Settings | Cool-Heat-Off |
Housing Color | White |
Temperature Differential | 2 Degrees to 4 Degrees F |
Number of Heating Stages | 1 |
Mounting Direction | Vertical |
Minimum Control Temperature | 50 Degrees F |
Stages | 1H/1C |
Differential Type | Fixed |
Changeover Type | Manual |
Switch Type/Action | SPDT, Open/Close on Rise |
Temperature Readout | Yes |
Housing Material | Plastic |
Temperature Scale | Fahrenheit/Celsius |
Maximum Control Temperature | 90 Degrees F |
Fan Settings | No Fan Setting |
Package Quantity | 1 |
