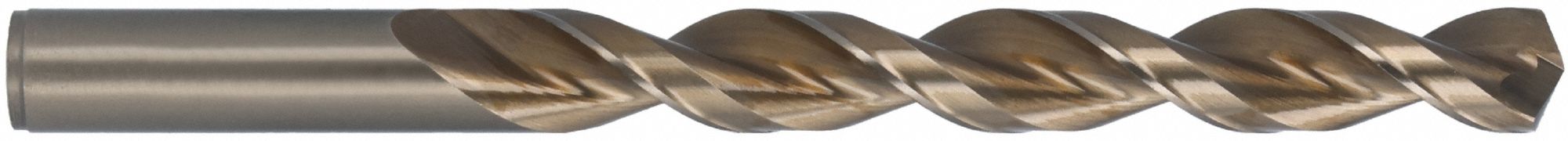

Cleveland C16586 Q-Cobalt Jobber Length Drill Bit, 2.5 mm, 135° Split Point, HSS-Co, Straw/Bronze, Wide Land Parabolic, List 2075

Cleveland C16586 Q-Cobalt Jobber Length Drill Bit, 2.5 mm, 135° Split Point, HSS-Co, Straw/Bronze, Wide Land Parabolic, List 2075

UPC: 697334165866 | Harmonization / Schedule B : 8207.50.4060

Country of Origin: United States | Shipping Weight: 0.01 lbs

$14.44 - $14.44
$14.44
$14.44 - $14.44
$14.44

Jobber Length Drill Bit, Drill Bit Size 2.5 mm, Drill Bit Point Angle 135 Degrees, Cobalt, Straw/Bronze finish, Decimal Equivalent 0.0984, Metric, Drill Bit Point Type Split Point, Non-Coolant Through, Number of Coolant Holes 0.

Drill Bit Point Angle 135 Degrees
Number of Flutes 2
Material - Machining Cobalt
Cutting Direction Right Hand
Finish - Machining Straw/Bronze
Shank Type - Machining Straight
Shank Shape Straight
List Number 2075
Flute Type Wide Land Parabolic
Application Carbon Steel, Tool Steel, Alloy Steel, Free-Machining Steel
Decimal Equivalent 0.0984
Standards ASME B94.11M, DIN 338
Coolant Fed Non-Coolant Through
Measurement System Metric
Overall Length 57 mm
Drill Bit Size 2.5 mm
Shank Dia. 2.5 mm
Flute Length 30 mm
Shank Size 2.50 mm
Drill Length Class Jobber-Length
Drill Diameter Tolerance +0.0000 in/-0.0005 in
Depth:Dia. Ratio 10xD
Shank Length 27 mm
Drilling Length 30.00 mm
