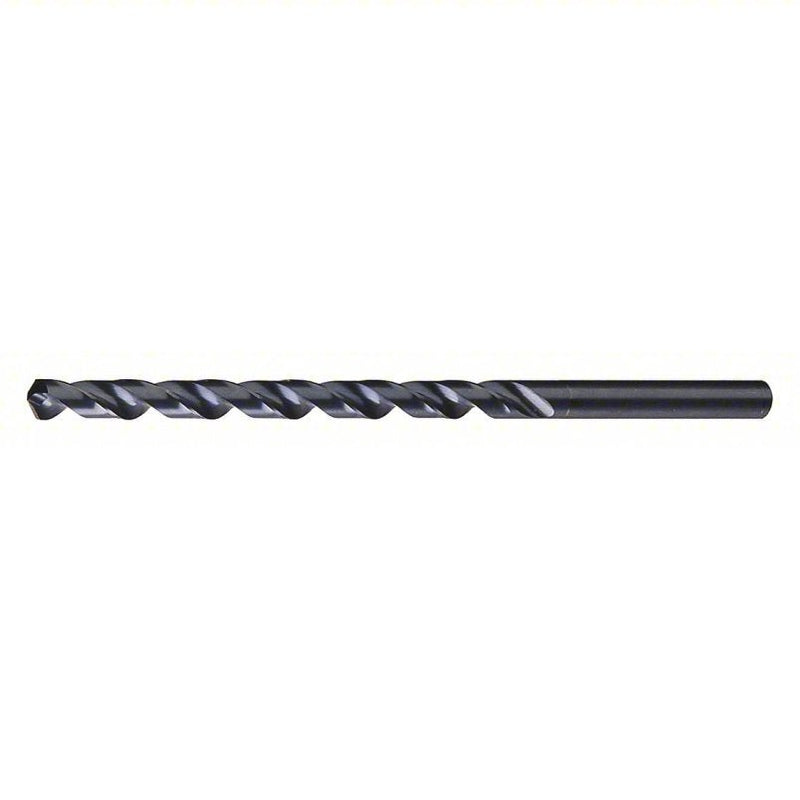

Cleveland C09746 Extra Long Drill Bit 9/32 in Drill Bit Size, 9 in Flute Lg, 17/64 in Shank Dia.

Extra Long Drill Bit, Drill Bit Size 9/32 in, Drill Bit Point Angle 118 Degrees , Conventional Point, High Speed Steel, Black Oxide, 28 Degrees , Material Grade - Machining General Purpose, Maximum Drilling Depth 9 in, Fractional Inch, 4xD

Shank Type	Straight
Material	High Speed Steel
Cutting Direction	Right Hand
Number of Flutes	2
Number of Pieces	0
Standards	ASME B94.11M
Application	For Drilling Carbon Steel, Alloy Steel and Cast Iron
Flute Type	Spiral
Coolant Through	No
Point Type	Notched
Decimal Equivalent	0.2813
Drill Bit Point Angle	118 Degrees
Drill Bit Finish	Steam Oxide
Drill Bit Material	High Speed Steel
Drill Bit Grouping	Drill Bit
Shank Type - Machining	Straight
Grade	General Purpose
List Number	950E
Coolant Fed	Non-Coolant Through
Series	950E
Helix Angle	28 Degrees
Material - Machining	High Speed Steel
Secondary Material Application	Cast Iron
Finish - Machining	Black Oxide
Primary Material Application	Cast Iron, Steel
Measurement System	Fractional Inch
Material Grade - Machining	General Purpose
Primary Material Application ISO Code	K, P
Secondary Material Application ISO Code	K
Drill Bit Point Type	Conventional Point
Spiral Direction	Right Hand
