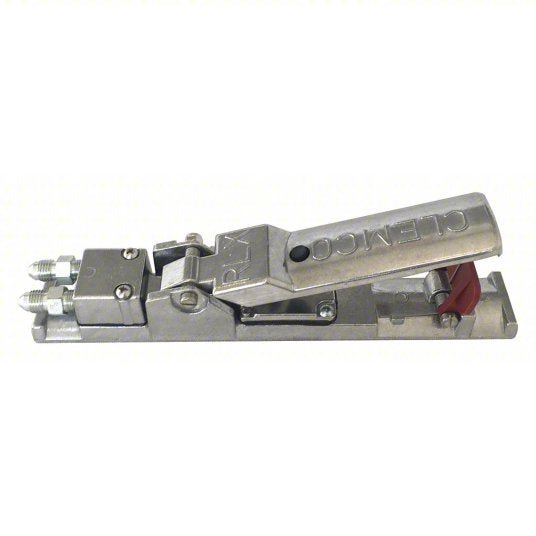

Clemco 10565 Remote Handle,for Twinline Hose
UPC: | Harmonization (Schedule B): 8424.90.2000
SKU KV65DC39
Original price
$227.59
-
Original price
$227.59
Original price
$227.59
$227.59
-
$227.59
Current price
$227.59
Control Handle for remote activation and deactivation of an abrasive blast machine. Fail-to-safe system stops blasting if operator drops or loses control of the handle. For use with Clemco remote control systems only.
Purpose
OSHA regulations require remote controls on all abrasive blast machines. Pneumatic remote control systems operate efficiently with up to 100 feet of twinline control hose.
OSHA regulations require remote controls on all abrasive blast machines. Pneumatic remote control systems operate efficiently with up to 100 feet of twinline control hose.
Requirements for Operation
These items are required but are not included with the handle:
• Twinline remote control hose (for pneumatic handles)
• Blast machine fitted with Clemco remote control valves
Description of Operation
Pressing the remote control handle activates the system and starts blasting; releasing the handle stops blasting. When the handle is released, a spring-loaded lever mechanism keeps the handle from
accidentally activating the system. The pneumatic handle utilizes twinline hose (both sides of the twinline are 3/16" ID). Air travels out one side of the twinline hose and escapes from an orifice in the handle. When the handle is pressed, a rubber button blocks the orifice, diverting the air back along the other side of the twinline hose. The returning air activates the remote control valves to begin blasting.
accidentally activating the system. The pneumatic handle utilizes twinline hose (both sides of the twinline are 3/16" ID). Air travels out one side of the twinline hose and escapes from an orifice in the handle. When the handle is pressed, a rubber button blocks the orifice, diverting the air back along the other side of the twinline hose. The returning air activates the remote control valves to begin blasting.
Advantages - Pneumatic
• Meets OSHA requirement for remote control system
• Twinline hose cannot be connected incorrectly
• Simple design is easy to service
• Meets OSHA requirement for remote control system
• Twinline hose cannot be connected incorrectly
• Simple design is easy to service
RLX Pneumatic Control Handle Assembly
Item Description Stock No.
(-) RLX Pneumatic control handle, complete ....................... .10565
(-) RLX Pneumatic control handle with ACS ........................ 07625
(-) Service Kit, RLX pneumatic control handle (K) .............. 22859
1. Handle ................................................................................ 10573
2. Body .................................................................................... 10568
3. Pneumatic adaptor .............................................................. 10562
4. Adaptor 1/8" NPS, 2 reqd ................................................... 01940
5. Tie, nylon wire, 2 reqd ....................................................... 02195
6. Lever lock (K) ................................................................... .10564
7. Spring, lever, 2 reqd. (K) .................................................... 05823
8. Nut, 8-32 lock, sis, 2 reqd. (K) .......................................... 05815
9. Spacer washer, sis, 4 reqd. (K) .......................................... 05434
10. Screw, 3/16" x 1-1/4" shoulder, 2 reqd. (K) ...................... 05817
11. Screw, 8-32 x 1" round head, 2 reqd. (K) .......................... 05819
12. Screw, 4-40 x 318" fillister head, 2 reqd. (K) .................... 05818
13. Screw 8-32 x 318" sis, round head, 2 reqd. (K) ................ 05814
14. Rubber button bumper (K) ................................................ 05821
15. Gasket, pneumatic adaptor (K) ......................................... .10563
Parts included in the Service Kit are identified by (K).
16. Switch assembly, ACS pneumatic ...................................... 07654
17. Elbow, 118" NPT male ........................................................ 03085
18. Tee, 1/8" NPT brass ............................................................ 02171
19. Adaptor, 1/8"NPT .............................................................. 01940
20. Guard, ACS pneumatic switch .......................................... 07655
21. Breather muffler, 1/8" NPT ................................................ 07657
22. Switch only, ACS ................................................................ 07658
23. Connector, 1/8" NPT, brass ................................................ 01962
