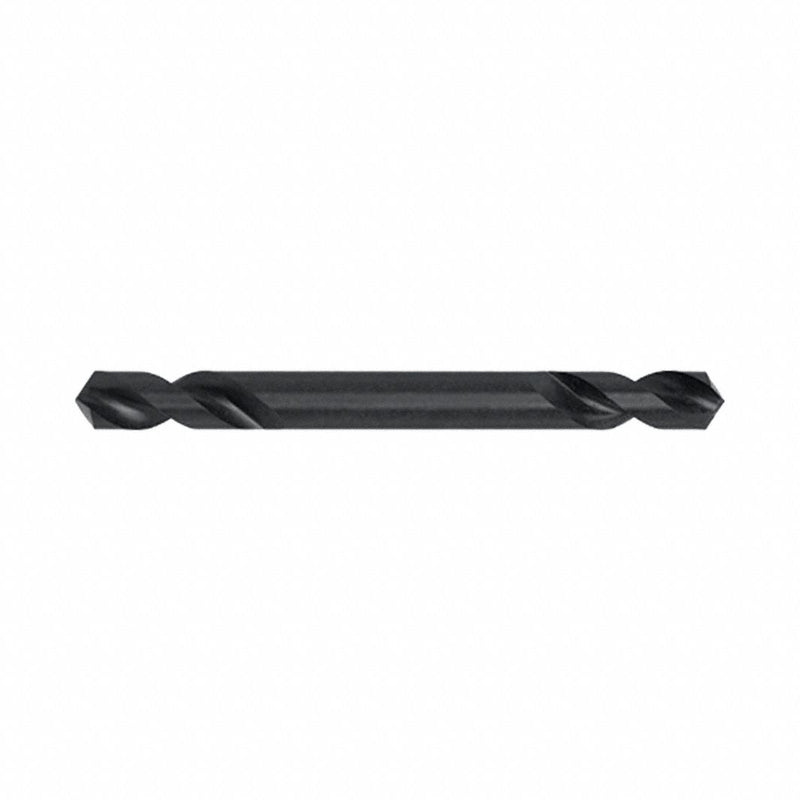

Cle-Line C20500 1815 Double End Drill Bit, 1/8 in, 135° Split Point, Black Oxide, HSS

Cle-Line C20500 1815 Double End Drill Bit, 1/8 in, 135° Split Point, Black Oxide, HSS

UPC: 697334205005 | Harmonization / Schedule B : 8207.50.4030

Country of Origin: United States | Shipping Weight: 0.01 lbs

$3.04 - $3.04
$3.04
$3.04 - $3.04
$3.04

Double End Drill Bit, 1/8 in Drill Bit Size, 135 Degrees Drill Bit Point Angle, Drill Bit Point Type Split Point, Black Oxide, High Speed Steel, Decimal Equivalent 0.1250, Fractional Inch, 11 mm Flute Length, 1/8 in Shank Dia.

Drill Bit Grouping Drill Bit
Drill Bit Point Angle 135 Degrees
Drill Bit Point Type Split Point
Drill Bit Size 1/8 in
Decimal Equivalent 0.1250
Measurement System Fractional Inch
Number of Pieces 1
Drill Style Double End Drill
Flute Length 11 mm
Overall Length 49 mm
Shank Diameter 1/8 in
Shank Type Straight
Number of Flutes 2
Flute Type Spiral
Helix Angle 28 Degrees
Cutting Direction Right Hand
Spiral Direction Right Hand
Material High Speed Steel
Finish/Coating Black Oxide
Material Grade Heavy Duty
Primary Material Application Steel
Primary Material Application ISO Code P
Secondary Material Application Cast Iron
Application For Sheet Metal and Other Thin Metals
Series 1815
Depth-to-Diameter Ratio 4xD
Standards Not Rated
Country of Origin United States
