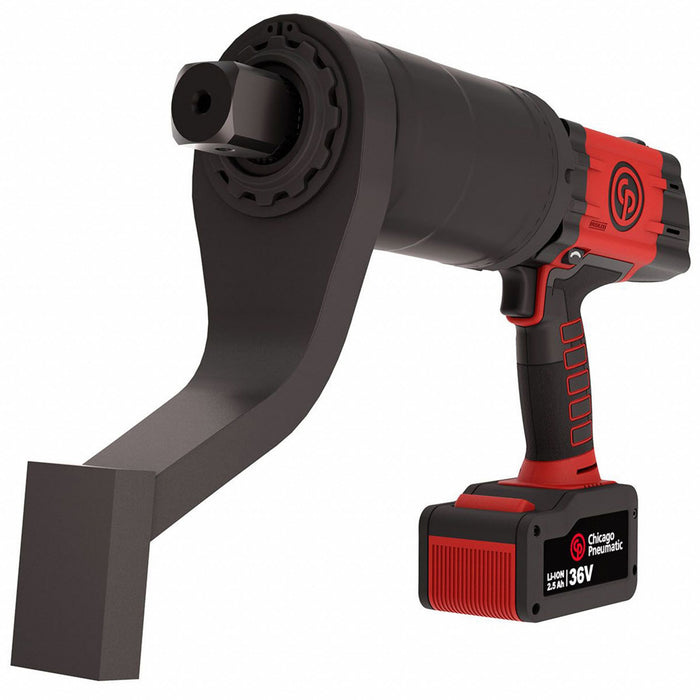

Chicago Pneumatic CP8681 cordless torque wrench kit

Chicago Pneumatic CP8681 Cordless Torque Wrench Kit, 5,970 ft-lb, 1-1/2 in Square Drive, 36V

UPC: 015451793791 | Harmonization / Schedule B : 8467.29.0040

Country of Origin: Hungary | Shipping Weight: 58.21 lbs

$20,650.62 - $20,650.62
$20,650.62
$20,650.62 - $20,650.62
$20,650.62

Torque Wrench Kit, (1) Bare Tool, (2) Batteries; (1) Charger, Power Source Cordless, Voltage 36 V DC, Brushless Motor No, Breakaway Torque 5,970 ft-lb, Fastening Torque 5,970 ft-lb, Free Speed 1 RPM, Max. Torque 5,970 ft-lb, Power to Weight Ratio 523.7 ft-lb./lb., Retainer Type Through Hole, Drive Size 1 1/2 in, Drive Style Extended, Number of Batteries Included 2, Battery Capacity (2) 2.5 Ah, Battery Model No. Mfr. No. CP36XP25, Battery Series Not Applicable, Charger Included Yes

Max. Torque 5,970 ft-lb
Features Automatic Release Reaction Arm, Extended Mobility with Compact High Cycle Rate, High Precision with +/- 4%, Intuitive Menu on a OLED Digital Screen, Safe Tightening with Second Start Button as Standard
Standards ETL, UL Listed
Includes (1) Charger, (2) Batteries
Tool Weight 25.1 lb
Power Source Cordless
Accuracy +/- 4%
Cordless Tool Kit Contents (1) Bare Tool, (2) Batteries; (1) Charger
Drive Style Extended
Tool Style Compact
Power to Weight Ratio 523.7 ft-lb./lb.
Actuation Trigger
Fastening Torque 5,970 ft-lb
Reaction Bar Yes
Handle Type Pistol Grip
Voltage 36 V DC
Retainer Type Through Hole
Brushless Motor No
Vibration Level 2.5 m/sq sec
Battery Model No. Mfr. No. CP36XP25
Breakaway Torque 5,970 ft-lb
Number of Batteries Included 2
Free Speed 1 RPM
Battery Capacity (2) 2.5 Ah
Housing Material Steel
Wireless Tool Tracking Yes
Charger Included Yes
Battery Type Tabbed
Torque - Minimum 1,480 ft-lb
Safety Features Double Safety Button (Second Start Safety Trigger)
Number of Chargers Included 1
Throttle Type Trigger
Battery Manufacturing Model Number CP36XP25
Speed Control Single
Torque - Maximum 5,970 ft-lb
Includes Battery Battery Included
Drive Shape Square
Tool Series CP86
Battery Chemistry Li-Ion
Charger Manufacturing Model Number CP18-36ch
Includes Reaction Bar Reaction Bar Included
No Load Speed 1 RPM
Torque Reporting Torque Spec Achieved
Torque Control Current Control
Built-In Light Type Lighted Digital Display
Torque Reached Indicator Digital Display
Clutch Style Gear Driven
Torque Adjustment Built to Order (as specified)
Anvil Style Extended
Country of Origin Hungary
