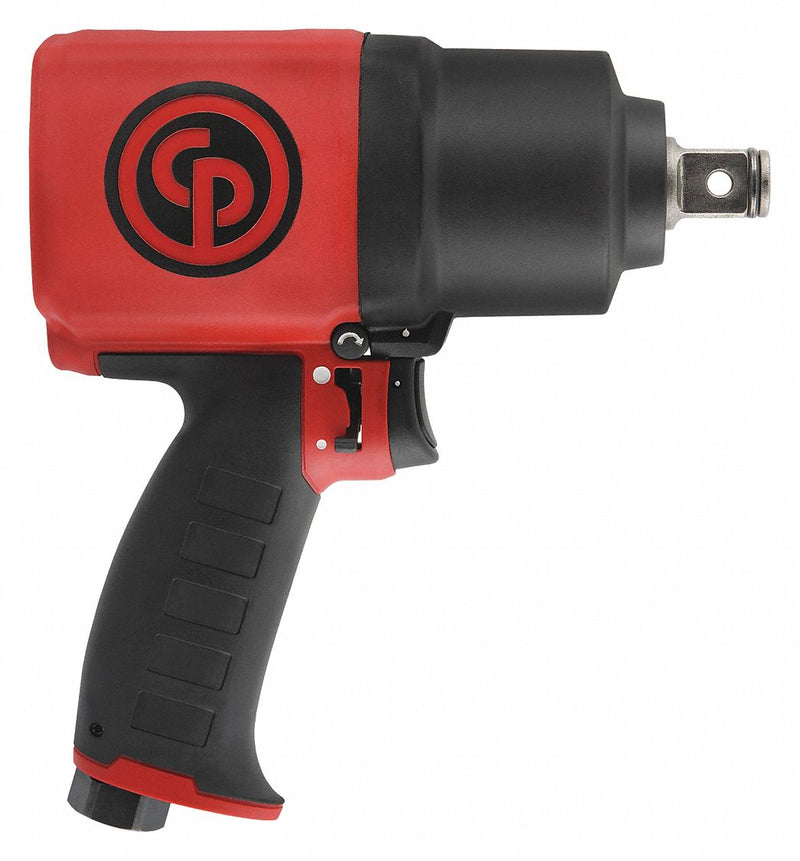

Chicago Pneumatic CP7769 Air Impact Wrench, Compact, 3/4 in Drive, Pistol-Grip, Square, Std, Medium Duty

Chicago Pneumatic CP7769 Air Impact Wrench, Compact, 3/4 in Drive, Pistol-Grip, Square, Std, Medium Duty

UPC: 015451779610 | Harmonization / Schedule B : 8467.11.5040

Country of Origin: Taiwan | Shipping Weight: 8.15 lbs

$968.81 - $968.81
$968.81
$968.81 - $968.81
$968.81

Impact Wrench, Power Source Air Powered, Air Consumption 41 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,440 ft-lb, Fastening Torque 1,080 ft-lb, Free Speed 6,500 RPM, Impact Rated Yes, Impact Sound Level 108 dB, Impacts per Minute 1,200, Number of Speed Settings 3, Power to Weight Ratio 208.7 ft-lb/lb, Max. Bolt Capacity 1/2 in

Drive Size - Air Tools 3/4" Square
Overall Length 7 7/8 in
Anvil Length - Air Impacts 1.000"
Air Inlet Size - Air Tools 3/8" NPT
Min. Hose Size 1/2 in
Drive Size 3/4 in
Hose Size - Minimum 1/2 in
Air Inlet Connection Size 3/8 in
Wire Rope Length 7 7/8 in
Length 7 7/8 in
MFR # CP7769
Zoro # G1620919
UPC # 015451779610
Country of Origin Taiwan, Province of China
Free Speed 6,500 RPM
Air Inlet 3/8 in NPT
Handle Type Pistol-Grip
Max. Bolt Capacity 1/2 in
Body Style - Air Tools Pistol
Retainer Type - Air Impacts Ring / Thru Hole
Duty Cycle - Air Tools General Duty
Handle Material Composite
Max. Torque 1440 ft.-lb.
Anvil Type - Air Impacts Standard
Torque Range 300 to 1440 ft.-lb.
Tool Weight 6.9 lb
Housing Material Composite
Item - Air Impact Wrenches Air Impact Wrench
Average CFM @ 15 Second Run Time 10.20
Retainer Type Friction Ring, Through Hole
Blows per Minute - Air Tools 1200
Required Pressure 90 psi
CFM @ Full Load 40.7
Features 360 Degrees Swivel Air Inlet, One-Hand Power Adjustment, One-Hand Reverse System, Variable Speed Trigger
Power to Weight Ratio 208.7 ft-lb/lb
Air Consumption 41 cfm
Breakaway Torque 1,440 ft-lb
Duty Rating General Duty
Exhaust Location Bottom
Built-In Light No
Vibration Level 13 m/sq sec
Impact Sound Level 108 dB
Impacts per Minute 1,200
Drive Type Standard
Impact Rated Yes
Min. Air Pressure 90 psi
Standards EN ISO 11148-6:2013, ISO 15744, ISO-28927-2
Number of Speed Settings 3
Clutch Style Twin Hammer
Tool Style Compact
Power Source Air-Powered
Max. Air Pressure 90 psi
Fastening Torque 1,080 ft-lb
Air Pressure 90 psi
Air Inlet Type NPT
Air Pressure - Maximum 90 psi
Frequency of Use Maintenance to Light Production
Drive Shape Square
Air Pressure - Minimum 90 psi
Bolt Capacity - Maximum 1 in
Tool Life Long Lasting
Power Source - TS Only Air-Powered
Power Source - old Air-Powered
Country of Origin Taiwan (subject to change)
