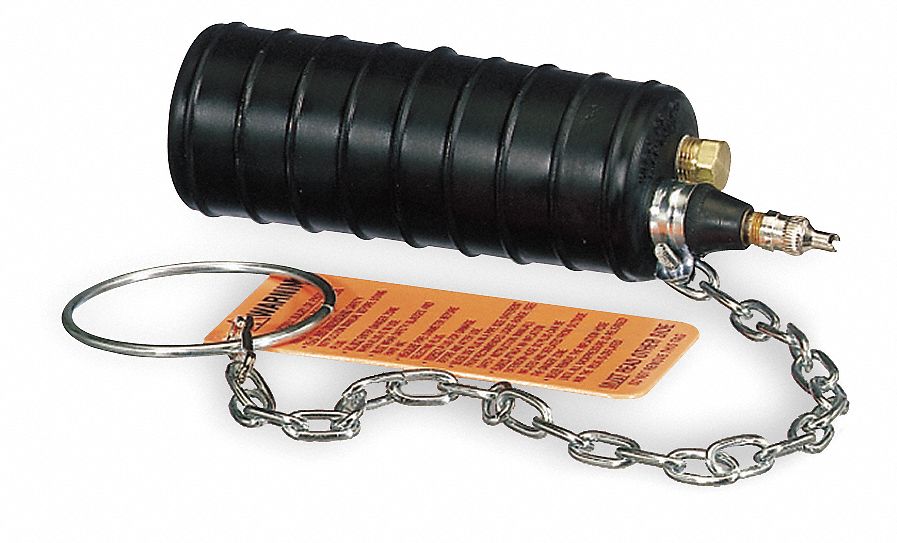

Cherne 262110 Muni-Ball Test Ball Plug 10 in Pneumatic

Cherne 262110 Muni-Ball Test Ball Plug, Pneumatic, 10 in Pipe, Natural Rubber, with Bypass

UPC: 675115262119 | Harmonization / Schedule B : 4016.95.0000

Country of Origin: United States | Shipping Weight: 9.3 lbs

$547.47 - $547.47
$547.47
$547.47 - $547.47
$547.47

Test Ball Plug, Air Connection Gender Male, Air Connection Size 1/4 in, Air Connection Type Tire Valve, Body Surface Style Textured, Bypass Connection Size 3 in, Bypass Connection Type NPT, Bypass Thread Gender Female, Deflated Diameter 8.75 in, Deflated Length 11.75 in, For Maximum Pipe Inside Diameter 10.25 in, For Maximum Pipe Size 10 in, For Minimum Pipe Inside Diameter 9 in, Head Tether Connection Eyebolt, Maximum Back Pressure (Air) 13 psi

Material Natural rubber
For Use In Blocking Sewer Flow Or Conducting Sewer Air Tests
Max. Back Pressure 30 ft of Head
Type Pneumatic
Required Inflation Pressure 35 psi
Includes (2) Port Plugs
Body Surface Style Textured
Air Connection Type Tire Valve
Test Plug Weight 9 lb
Head Tether Connection Eyebolt
Maximum Back Pressure (Water) 30 ft of head
Series Muni-Ball
For Use On Piping Systems
Contains Bypass Yes
Includes Protective Sleeve No
Contains Pressure Release Valve No
Number of Inflation Chambers 1
Application Blocking, Commercial Piping Systems, Pipe Plug, Residential Piping Systems, Testing
Plug Seal Material Natural Rubber
Air Connection Gender Male
Bypass Connection Type NPT
Maximum Back Pressure (Air) 13 psi
Bypass Thread Gender Female
Country of Origin United States
