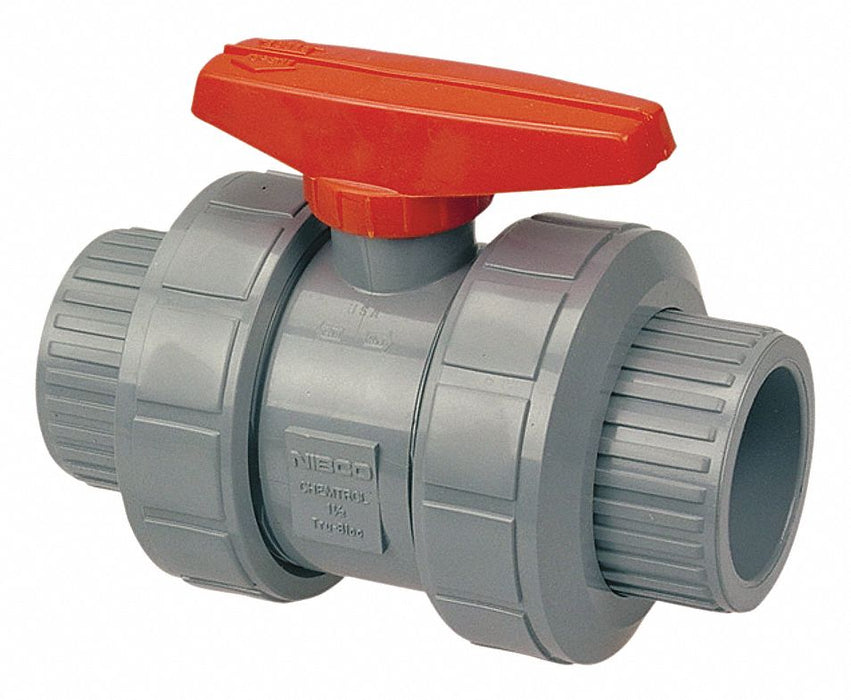

Chemtrol S51TB-V 3 Manual Two-Way Ball Valve, 3 in, CPVC, Socket x Socket, Full Port, Inline True Union, NSF 61

Chemtrol S51TB-V 3 Manual Two-Way Ball Valve, 3 in, CPVC, Socket x Socket, Full Port, Inline True Union, NSF 61

UPC: 039923749253 | Harmonization / Schedule B : 8481.80.5090

Country of Origin: United States | Shipping Weight: 11.7 lbs

$1,200.20 - $1,200.20
$1,200.20
$1,200.20 - $1,200.20
$1,200.20

Manual Two-Way Ball Valve, Body Material CPVC, For Media Water, Valve Construction Three-Piece, Nominal Valve Size 3 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Ball Material CPVC, Ball Port Style Full Port, Handle Type Lever, Connection Size - Side 1 3 in

NSF Certifications for Food and Drinking Water
Ball Material CPVC
Body Material Plastic (CPVC)
Body Style Inline True Union
Ball Port Style Full Port
Valve Ways 2-Way
Valve Structure Three-Piece
For Media Water
Connection Type Socket x Socket
Stem Material CPVC
Handle Type Lever
Handle Material PVC
Seat Material PTFE
Seal Material FKM
Standards ASTM F1970, NSF/ANSI Standard 14
Compliance Annex G, ASTM F1970, NSF/ANSI Standard 14, NSF/ANSI Standard 61
NSF 61
Nominal Valve Size 3 in
Pipe Schedule Compatibility Schedule 80
Max. Pressure 150 PSI CWP
Temp. Range 73 Degrees to 210 Degrees F
Color - Valve Body Gray/Orange
Color - Valve Handle Orange
Features Engineered with a self-adjusting seat and upstream and downstream blocking capability to stop flow when an alternate union is removed for servicing the piping system
Green Certification NSF(R) Certified (Sustainability or Environmental Standard)
Restrictions Restricted for conveying or dispensing water for potable use (human consumption).
Country of Origin United States
