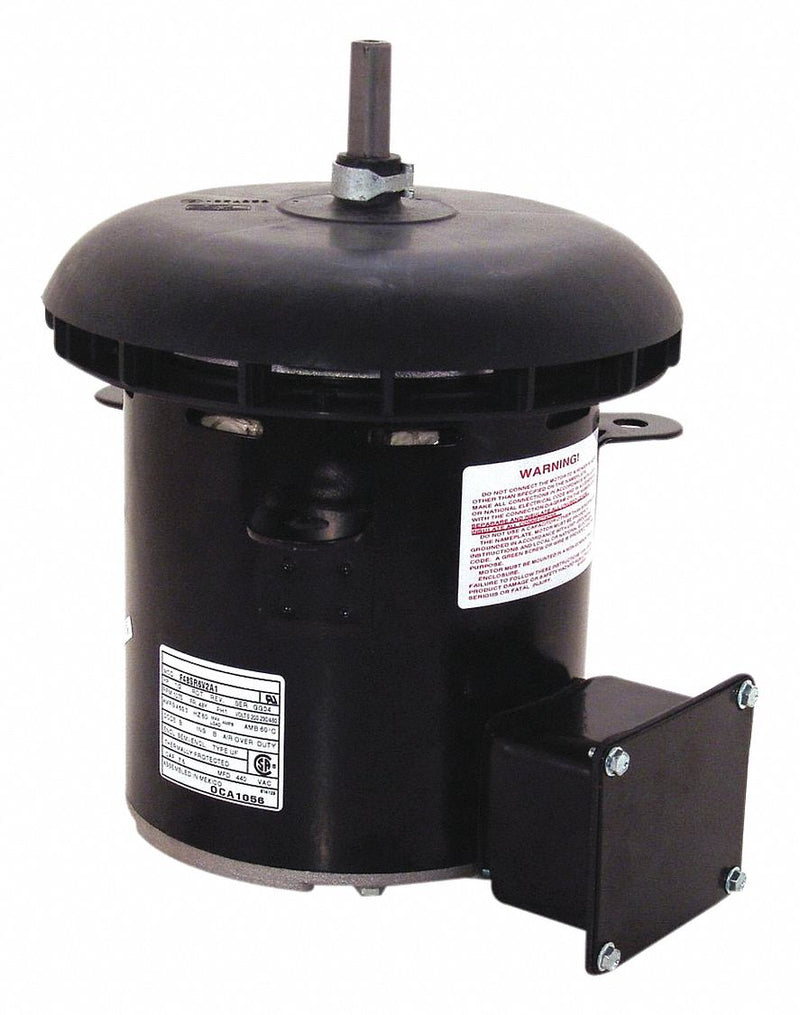

Century OCA1056 Condenser Fan Motor, 1/2 HP, 1075 RPM, 200-230/460V AC, Carrier/BDP OEM Replacement

Century OCA1056 Condenser Fan Motor, 1/2 HP, 1075 RPM, 200-230/460V AC, Carrier/BDP OEM Replacement

UPC: | Harmonization / Schedule B : 8501.40.4040

Country of Origin: India | Shipping Weight: 21 lbs

$867.05 - $867.05
$867.05
$867.05 - $867.05
$867.05

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 4.6/2.3 A, 48Y Frame, OEM Replacement Brand Carrier/BDP, Replacement For 230, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over

Motor Design Permanent Split Capacitor
Phase Single
HP 1/2
RPM Range 1,001-1,100
No. of Speeds 1
Voltage 200-230/460V AC
Motor Shaft Rotation CW/CCW
Frame 48Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Lug
Motor Sub Application Condenser Fan
Hz 60
Motor Thermal Protection Auto
Capacitor Required 2MDY7
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC, 208-230/460V AC, 208V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Motor Shaft Design Flat
Replacement For 230
Nameplate RPM 1,075
Max. Ambient Temp. 60 Degrees C
Standards CSA Certified, UL Recognized
Motor Application OEM Replacement
Duty Continuous
Motor Service Factor 1
Ins. Class B
OEM Replacement Brand Carrier/BDP
Application Carrier/BDP
Motor Bearings Ball
Number of Shafts 1
Full Load Amps 4.6/2.3 A
Weight 21 lb
Usable @ 208V Usable at 208V
Motor Mounting Position Vertical Shaft Down
Usable @ 200V Usable at 200V
Motor Frame Material Steel
Rotation CW/CCW
Features OEM Replacement for Carrier/BDP
Mounting Lug
Number of Speeds 1
Country of Origin India
