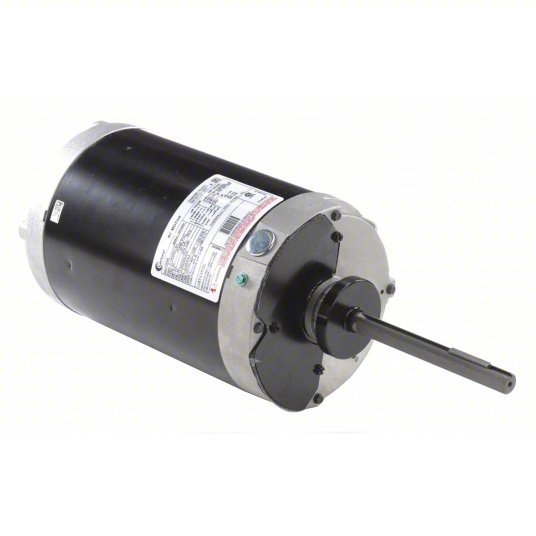

Century H699 Condenser Fan Motor Band Mount, Open Air-Over, 2 HP, 1,140 Nameplate RPM, 1 Speed, Auto

UPC: 094700809278 | Harmonization (Schedule B): 8501.52.4000

Original price $665.99 - Original price $665.99
Original price
$665.99 - $665.99
Current price $665.99
Condenser Fan Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 208-230/460V AC, 3.1/6.8-6.2 A Full Load Amps, 56Y Frame, Output Watts 1500 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Frame Material Steel
Motor Design 3-Phase
Phase Three
HP 2
RPM Range 1,001-1,100
No. of Speeds 1
Voltage 208-230/460V AC
Motor Shaft Rotation CW/CCW
Frame 56Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Band
Motor Mounting Position Vertical Shaft Up
Motor Thermal Protection Auto
Max. Ambient Temp. 60 Degrees C
Nameplate RPM 1,140
Motor Application HVAC/R
Motor Sub Application Condenser Fan
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Service Factor 1
Nominal Efficiency 84 %
Features Quick Connect Design, Reversible
Hz 60 Hz
Motor Bearings Ball
Duty Continuous
Ins. Class B
Full Load Amps 3.1/6.8-6.2 A
Standards CSA Certified, UL Recognized
Motor Shaft Design Keyed
Stud Quantity 4
Duty Cycle Continuous
Output Watts 1500 W
Usable @ 208V Yes
Usable @ 200V No
Weight 44 lb
Motor Frame Material Steel
