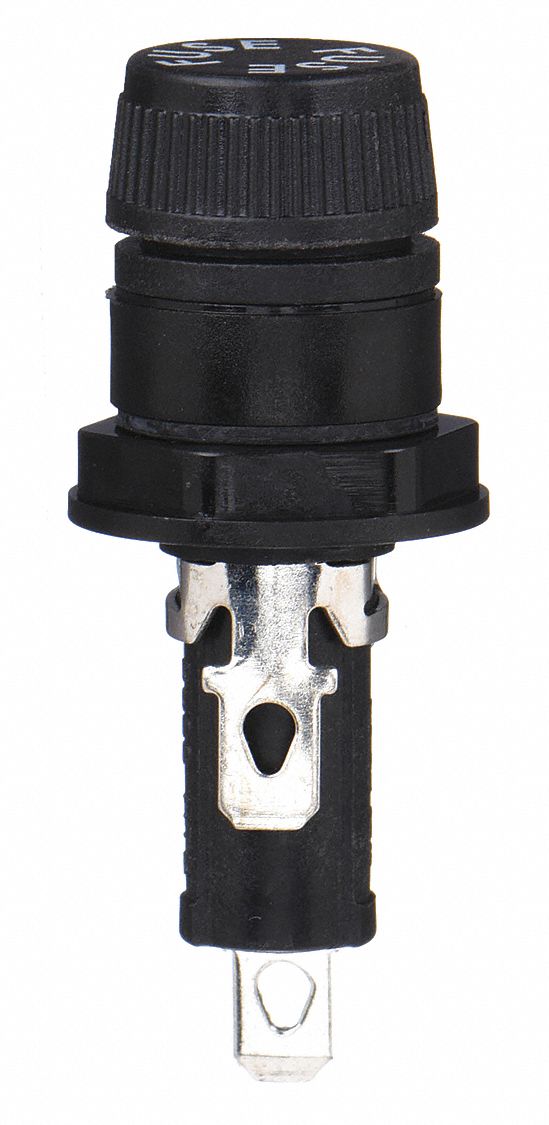

Bussmann HTB-42I-R Panel Mount Fuse Holder, For Fuse Size 1/4 in x 1 1/4 in, 1 Pole, 20 A Max, 250 V AC

Bussmann HTB-42I-R Panel Mount Fuse Holder, For Fuse Size 1/4 in x 1 1/4 in, 1 Pole, 20 A Max, 250 V AC

UPC: | Harmonization / Schedule B : 8536.90.8085

Country of Origin: Mexico | Shipping Weight: 0.03 lbs

$13.61 - $13.61
$13.61
$13.61 - $13.61
$13.61

Fuse holders for cylindrical fuses use a round, top-loading design for quick fuse replacement and a rear terminal connection for secure circuit integration. Enclosing the fuse within the holder helps prevent accidental contact with energized components, offering a safe and reliable solution for fixed panel installations.

Compatible Fuse Series 311, 312, 313, 314, 315, 322, 326, 3AG, ABC, ACG, GAB, GBB, GDL, GDV, GGC, GSA, MDA, MDL, MDQ, MDV, MDX, MMB
AC Voltage Rating 250 V AC
Body Material Thermoplastic
Compatible Fuse Diameter 1/4 in
Compatible Fuse Dimensions (Dia. x Length) 1/4 in x 1-1/4 in
Compatible Fuse Length 1-1/4 in
Current - Maximum 20 A
Current - Minimum 0 A
DC Voltage Rating 125 V DC
Fits Fuse Class or Type Glass and Ceramic
Fuse Block Style Non-Rejection
Fuse Holder Cap Style Screw Knob
Fuse Holder Mounting Style Panel
Fuse Holder Termination Type 3/16 in Quick Connect
Mounting Hole Size 1/2 in x 29/64 in dia
Number of Poles 1
Overall Diameter 0.25 in
Overall Length 0.25 in
Visual Indication Non-Indicating
Country of Origin Mexico
