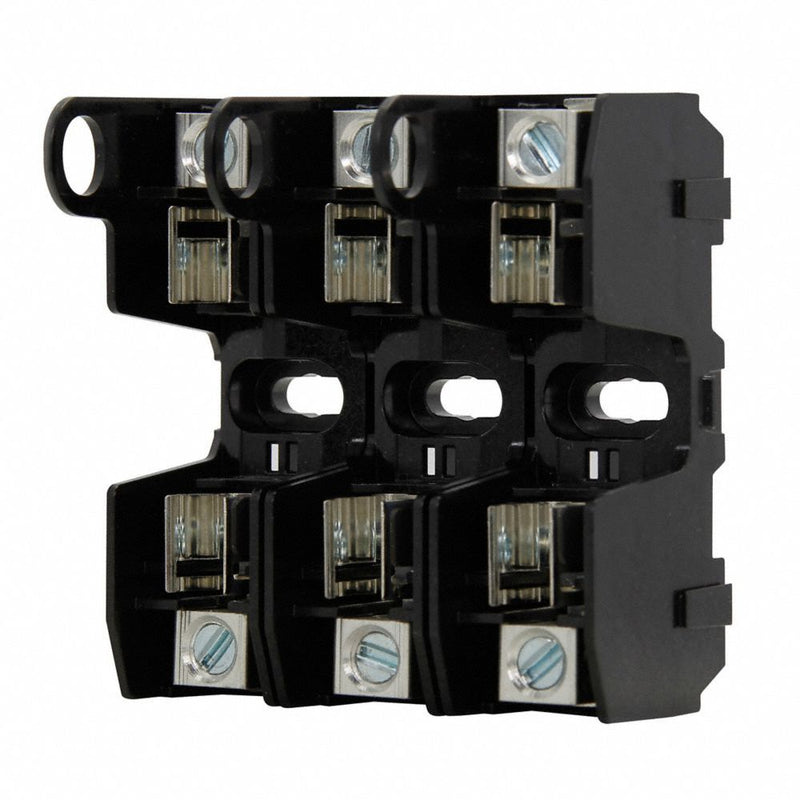

Bussmann HM25030-3CR Fuse Block, Open Block Design, 3 Pole, 250 V AC, Box Lug, Non-Indicating

Bussmann HM25030-3CR Fuse Block, Open Block Design, 3 Pole, 250 V AC, Box Lug, Non-Indicating

UPC: | Harmonization / Schedule B : 8536.90.8585

Country of Origin: Mexico | Shipping Weight: 0.25 lbs

$137.32 - $137.32
$137.32
$137.32 - $137.32
$137.32
AC Voltage Rating 250 V AC
Body Material Thermoplastic
Compatible Fuse Series NLN, NON, OT, REN, RF, RLN
Current - Maximum 30 A
Current - Minimum 0 A
DC Voltage Rating 125 V DC
Compatible Fuse Class or Type Class H; Class K5
Compatible Fuse Diameter 9/16 in
Compatible Fuse Length 2 in
Fuse Block Terminal Type Box Lug
Fuse Block Design Open
Fuse Block Mounting Style DIN Rail; Bolt-Down
Fuse Block Style Non-Rejection
Number of Poles 3
Overall Height 2 in
Overall Length 3.2 in
Overall Width 2.9 in
Standards CE; CSA Certified; REACH; RoHS; UL Listed
Visual Indication Non-Indicating
Wire Size - Maximum 2 AWG
Country of Origin Mexico
