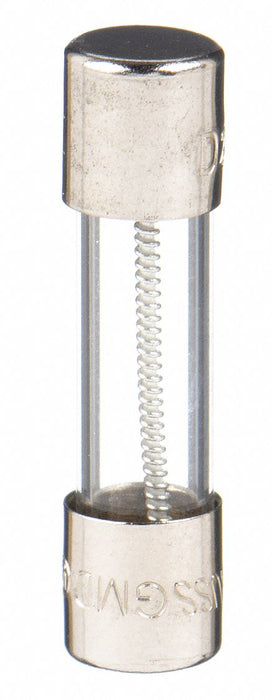

Bussmann GMD-4-R Glass Fuse PK5

Bussmann GMD-4-R Glass Fuse, GMD Series, Time-Delay, 4 A, 250V AC, 5mm x 20mm, PK 5

UPC: 051712657938 | Harmonization / Schedule B : 8536.10.0020

Country of Origin: China | Shipping Weight: 0.02 lbs

$48.47 - $48.47
$48.47
$48.47 - $48.47
$48.47

Fuse, 4 A, 250 V AC, GMD Series, Glass Fuse, Time-Delay, Body Style Cylindrical, Non-Rejection, Interrupt Rating 10kA at 125V AC, 200A at 250V AC, Fuse Size 20mm L x 5mm dia, Length 20 mm, Diameter 5 mm, Equivalent Brand and Series Bussmann GMD, Littelfuse 239, Mersen GSC, Equivalent Series 239, GMD, GSC, Body Material Glass, Compatible Fuse Block Series HTB, Single Element, Standards File E19180, PSE/JET File 1641-31003-1001, UL Guide JDYX2, Package Quantity 5

Series GMD
Speed Time-Delay
Amps 4A
AC Voltage Rating 250V AC
Visual Indication Non-Indicating
Interrupt Rating 10kA at 125V AC, 200A at 250V AC
Body Style Cylindrical
Body Material Glass
Equivalent Brand and Series Bussmann GMD, Littelfuse 239, Mersen GSC
Compatible Fuse Block Series HTB
Fits Fuse Block Style Nonrejection
DC Voltage Rating 32V DC
Element Single
Green Environmental Attribute RoHS 2011/65/EU Compliant
Functionally Equal To Littelfuse 239, Mersen/Ferraz Shawmut GSC
Standards File E19180, PSE/JET File 1641-31003-1001, UL Guide JDYX2
In Line Fuseholder E
Fuse Holder Code E
Equivalent Series 239, GMD, GSC
Connection Type Ferrule End x Ferrule End
Weight 0.002 lb
Current 4 A
Country of Origin China
