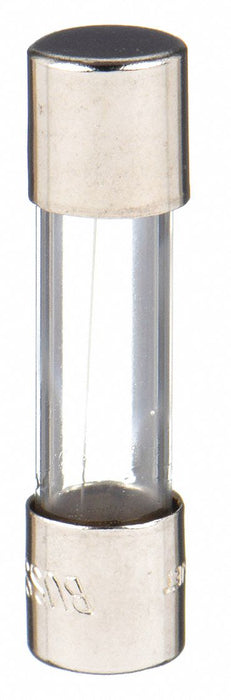

Bussmann GMC-3-R Glass Fuse PK5

Bussmann GMC-3-R Glass Fuse, GMC Series, Time-Delay, 3 A, 250V AC, 5mm x 20mm, PK 5

UPC: 051712642927 | Harmonization / Schedule B : 8536.10.0020

Country of Origin: China | Shipping Weight: 0.1 lbs

$36.66 - $36.66
$36.66
$36.66 - $36.66
$36.66

Fuse, 3 A, 250 V AC, GMC Series, Glass Fuse, Time-Delay, Body Style Cylindrical, Non-Rejection, Interrupt Rating 100A at 250V AC, 10kA at 125V AC, Fuse Size 20mm L x 5mm dia, Length 20 mm, Diameter 5 mm, Equivalent Brand and Series Bussmann GMC, Littelfuse 239, Mersen GSC, Equivalent Series 239, GMC, GSC, Body Material Glass, Compatible Fuse Block Series HTB, Single Element, Standards CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX, Package Quantity 5

Series GMC
Speed Time-Delay
Amps 3A
AC Voltage Rating 250V AC
Visual Indication Non-Indicating
Interrupt Rating 100A at 250V AC, 10kA at 125V AC
Body Style Cylindrical
Body Material Glass
Equivalent Brand and Series Bussmann GMC, Littelfuse 239, Mersen GSC
Compatible Fuse Block Series HTB
Fits Fuse Block Style Nonrejection
DC Voltage Rating 32V DC
Green Environmental Attribute RoHS 2011/65/EU Compliant
Standards CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
Fuse Holder Code E
Element Single
In Line Fuseholder E
Functionally Equal To Littelfuse 239, Mersen/Ferraz Shawmut GSC
Equivalent Series 239, GMC, GSC
Connection Type Ferrule End x Ferrule End
Weight 0.002 lb
Current 3 A
Country of Origin China
