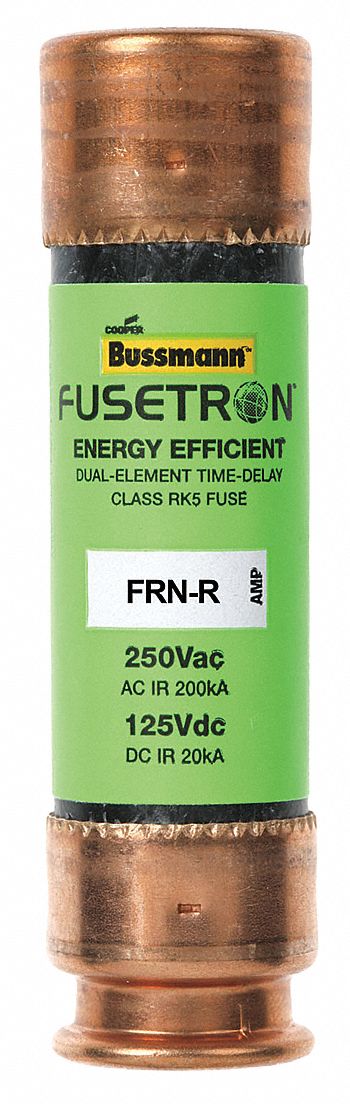

Fuse, 40 A, 250 V AC, 125 V DC, Class RK5, FRN-R Series, Non-Indicating, Time-Delay, Body Style Cylindrical, Fits Fuse Block Style Rejection, Interrupt Rating 200kA at 250V AC, 20kA at 125V DC, Fuse Size 3 in L x 13/16 in dia, Length 3 in, Diameter 13/16 in, Equivalent Brand and Series Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R, Equivalent Series ECNR, FLNR, FRN-R, TR-R, Compatible Fuse Block Series HM250, RM250, Body Material Fiberglass, Dual Element
| CAD Available |
Yes |
| Class |
RK5 |
| Series |
FRN-R |
| Speed |
Time-Delay |
| Amps |
40A |
| AC Voltage Rating |
250V AC |
| DC Voltage Rating |
125V DC |
| Visual Indication |
Non-Indicating |
| Interrupt Rating |
200kA at 250V AC, 20kA at 125V DC |
| Body Style |
Cylindrical |
| Body Material |
Fiberglass |
| Length |
3 in |
| Diameter |
13/16 in |
| Equivalent Brand and Series |
Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R |
| Equivalent Series |
ECNR, FLNR, FRN-R, TR-R |
| Fits Fuse Block Style |
Rejection |
| Compatible Fuse Block Series |
HM600, R250 |
| Element |
Dual |
| Standards |
CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ |
| Functionally Equal To |
Littelfuse FLNR, Mersen/Ferraz Shawmut TR-R |
| Fuse Holder Code |
K |
| Connection Type |
Ferrule End x Ferrule End |
| Weight |
0.11 lb |
| Overall Width |
Not Applicable |
| Overall Length |
3 in |
| Current |
40 A |
| Interrupt Rating - DC |
20 kA |
| Overall Depth |
Not Applicable |
| Overall Diameter |
13/16 in |
| Interrupt Rating - AC |
200 kA |
| Package Quantity |
1 |
| Country of Origin |
Mexico |
