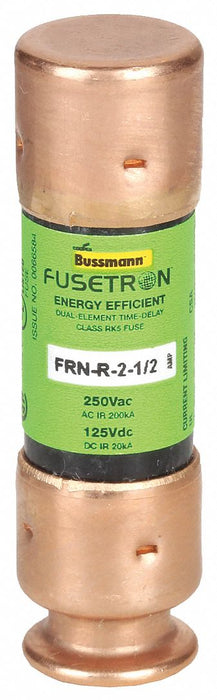

Bussmann FRN-R-2-1/2 Class RK5 Fuse

Bussmann FRN-R-2-1/2 Fusetron Fuse, Class RK5, Time-Delay, 2-1/2 A, 250V AC

UPC: 051712507165 | Harmonization / Schedule B : 8536.10.0020

Country of Origin: Mexico | Shipping Weight: 0.01 lbs

$27.99 - $27.99
$27.99
$27.99 - $27.99
$27.99

Fuse, 2 1/2 A, 250 V AC, 125 V DC, Class RK5, FRN-R Series, Non-Indicating, Time-Delay, Body Style Cylindrical, Fits Fuse Block Style Rejection, Interrupt Rating 200kA at 250V AC, 20kA at 125V DC, Fuse Size 2 in L x 9/16 in dia, Length 2 in, Diameter 9/16 in, Equivalent Brand and Series Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R, Equivalent Series ECNR, FLNR, FRN-R, TR-R, Compatible Fuse Block Series HM250, RM250, Body Material Fiberglass, Dual Element

Class RK5
Series FRN-R
Speed Time-Delay
Amps 2.50A
AC Voltage Rating 250V AC
DC Voltage Rating 125V DC
Visual Indication Non-Indicating
Interrupt Rating 200kA at 250V AC, 20kA at 125V DC
Body Style Cylindrical
Body Material Fiberglass
Equivalent Brand and Series Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R
Equivalent Series ECNR, FLNR, FRN-R, TR-R
Fits Fuse Block Style Rejection
Compatible Fuse Block Series HM600, R250
Element Dual
Fuse Holder Code H
Standards CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
Functionally Equal To Littelfuse FLNR, Mersen/Ferraz Shawmut TR-R
Interrupt Rating - DC 20 kA
Current 2.5 A
Interrupt Rating - AC 200 kA
Country of Origin Mexico
