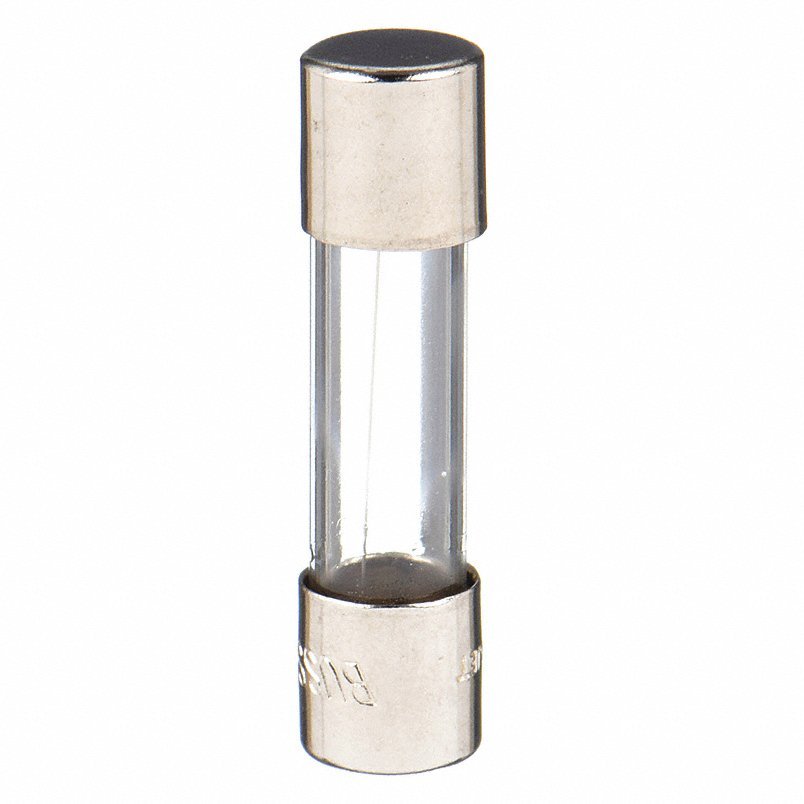

Bussman GMC-250-R Fuse, Time Delay, 250mA, GMC Series, 250V AC, Not Rated, 20mm L x 5mm dia PK5
UPC: 051712642897 | Harmonization (Schedule B): 8536.10.0020
SKU KV1CK01
Original price
$38.97
-
Original price
$38.97
Original price
$38.97
$38.97
-
$38.97
Current price
$38.97
Fuse, 250 mA, 250V AC, Not Rated, GMC Series, Glass Fuse, Time Delay, Body Style Cylindrical, Nonrejection, Interrupt Rating 10kA at 125V AC, 35A at 250V AC, Fuse Size 20mm L x 5mm dia, Length 20 mm, Diameter 5 mm, Equivalent Brand and Series Bussmann GMC, Littelfuse 239, Mersen GSC, Equivalent Series 239, GMC, GSC, Body Material Glass, Compatible Fuse Block Series HTB, Single Element, Standards CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX, Package Quantity 5
| Item | Fuse |
| Amps | 250mA |
| Speed | Time Delay |
| Series | GMC |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10kA at 125V AC, 35A at 250V AC |
| Visual Indication | Glass Fuse |
| Body Style | Cylindrical |
| Fits Fuse Block Style | Nonrejection |
| Body Material | Glass |
| Element | Single |
| Standards | CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX |
| Equivalent Brand and Series | Bussmann GMC, Littelfuse 239, Mersen GSC |
| Equivalent Series | 239, GMC, GSC |
| Compatible Fuse Block Series | HTB |
| Indicating / Nonindicating | Indicating |
| Fuse Amps | 250mA |
| Fuse Interrupt Rating | 35A at 250VAC, 10kA at 125VAC |
| Functionally Equal To | Littelfuse 239, Mersen/Ferraz Shawmut GSC |
| Fuse Speed | Time Delay |
| Fuse Voltage Rating | 250VAC |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Rejection / Nonrejection | Nonrejection |
| Fuse Holder Code | E |
| In Line Fuseholder | E |
| Weight | 0.002 lb |
| Connection Type | Ferrule End x Ferrule End |
| Package Quantity | 5 |
