Burndy YA6CLBOX One Hole Lug Compression Connector, 6 AWG - KVM Tools Inc.KV29229192

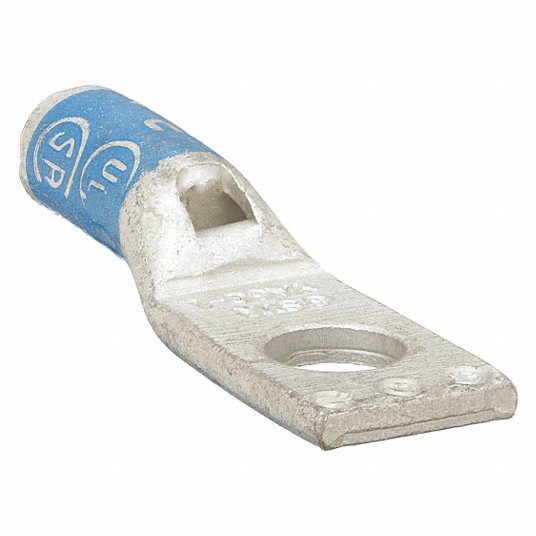

Burndy YA6CLBOX One Hole Lug Compression Connector, 6 AWG

UPC: 781810555347 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: United States | Shipping Weight: 0.05 lbs

$7.16 - $7.16
$7.16
$7.16 - $7.16
$7.16
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.45 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Connector Type Standard Barrel
Material Copper
Color Code Blue
Hole Center to End 0.31 in
Die Code 374, 7
Standards CSA Certified, UL 486A-486B, UL Listed
Tongue Style Standard
Peep Hole Yes
Plate Material Electro Tin
Item One-Hole Lug Compression Connector
Hole Center to Center Not Applicable
Application For Code Conductor
Termination Style Crimp
Barrel Style Chamfered, Skived
Tongue Thickness 0.08 in
For Wire Type Stranded
For Conductor Material Copper
Inspection Hole Yes
Maximum Voltage 35 kV AC
Contact Finish Tin
Tongue Angle Straight
Special Features Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv
RoHS Compliant Yes
Maximum Operating Temperature 194 Degrees F
Feature - Barrel Type Standard
Rating - Minimum Voltage 600
Physical Attribute - Tongue Type Standard
Plating Type Tin - Electro Plated
Type Standard Barrel, Tin Plated
Rating - KVA 35 kV
Certification - CSA Approved Yes
Plated Y
Voltage - Maximum 35000
Conductor - Material Copper
Die Index 7;374
Physical Attribute - Tongue Angle Straight
Physical Attribute - Number of Holes 1
Trade Name HYLUG™
UL Listed Yes
Voltage Rating 35 kV
Industry Standard(s) UL 486A-486B
Finish Type Tin-Plated
Conductor Type CODE
Feature - Barrel Style ChamferedSkived
Package Quantity 1
