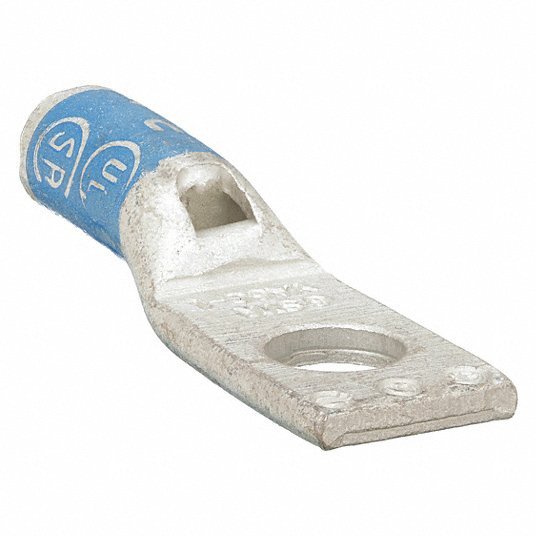

Burndy YA6CL3BOX One Hole Lug Compression Connector, 6 AWG

UPC: 781810559406 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: United States | Shipping Weight: 0.01 lbs

$8.74 - $8.74
$8.74
$8.74 - $8.74
$8.74

One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 374, 7, Tongue Angle Straight, Tongue Width 0.52 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp

Connector Type Standard Barrel
Material Copper
Color Code Blue
Item One-Hole Lug Compression Connector
Hole Center to End 0.34 in
Standards CSA Certified, UL 486A-486B, UL Listed
Die Code 374, 7
Tongue Style Standard
Peep Hole Yes
Plate Material Electro Tin
Hole Center to Center Not Applicable
Application For Aluminum & Copper Conductors
Barrel Style Chamfered, Skived
Contact Finish Tin
For Conductor Material Copper
RoHS Compliant Yes
Tongue Angle Straight
Inspection Hole Yes
Maximum Voltage 35 kV AC
Tongue Thickness 0.07 in
Special Features Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv
Termination Style Crimp
For Wire Type Stranded
Maximum Operating Temperature 194 Degrees F
Conductor - Material Copper
Plating Type Tin - Electro Plated
Physical Attribute - Number of Holes 1
Type Standard Barrel, Tin Plated
Certification - CSA Approved Yes
Rating - Minimum Voltage 600
Feature - Barrel Type Standard
Physical Attribute - Tongue Type Standard
Rating - KVA 35 kV
Plated Y
Voltage - Maximum 35000
Die Index 7;374
Physical Attribute - Tongue Angle Straight
Feature - Barrel Style ChamferedSkived
Voltage Rating 35 kV
Trade Name HYLUG™
Conductor Type CODE
Industry Standard(s) UL 486A-486B
Finish Type Tin-Plated
UL Listed Yes
Package Quantity 1
